Double gear pump
The Double gear pump has a load-sensing function, and when combined with a load-sensing multi-way valve, it can realize three composite actions, operate silky smooth processes, save energy and fuel, and have high work efficiency.
-
Bulldozer cylinder protection plate
he bulldozer cylinder is equipped with a protective plate to protect the cylinder from damage during operation.
-
Cooling fan
The internally-mounted cooling fan in the engine compartment ensures rapid heat dissipation and stable operation.
-
Cnstrument panel
The instrument panel display screen can display working hours, battery voltage, etc., making it easy to observe the health of the machine.
-

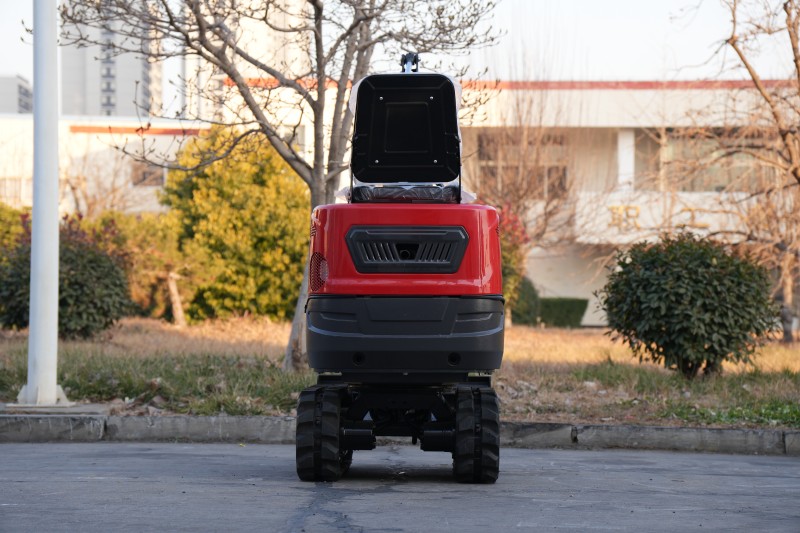

No tail design
No tail design
-
Swing boom
Standard big arm side swingfunction, cast iron side swing head, beautiful and durable
-
Control System
Mechanical operation possesses continuous stability, enhancing efficiency.
-
Extended track
Extended crawler tracks ensure stable and reliable operation
-
Comfortable seats
Comfortable seat ensures you won't feel tired while working for a long time.
-

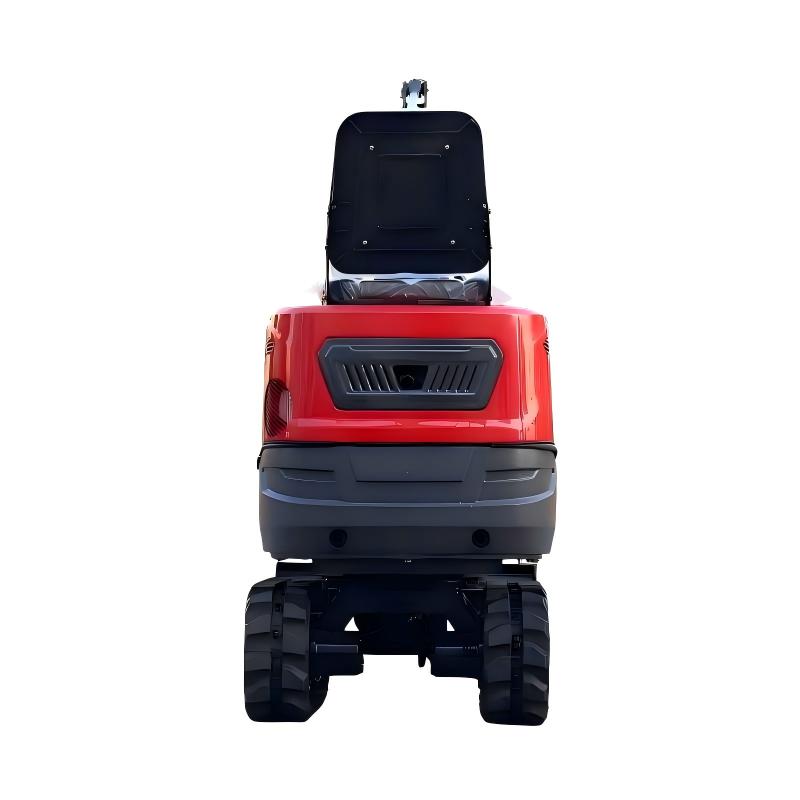

Tail can be opened
Convenient inspection and maintenance.
-
The entire vehicle adopts a molded appearance.
The entire vehicle adopts a molded appearance, which is durable and in line with public aesthetics. It is also convenient for maintenance and repair. The entire vehicle is made of Q355 manganese steel plate,Double gear pump and the action is soft and efficient.

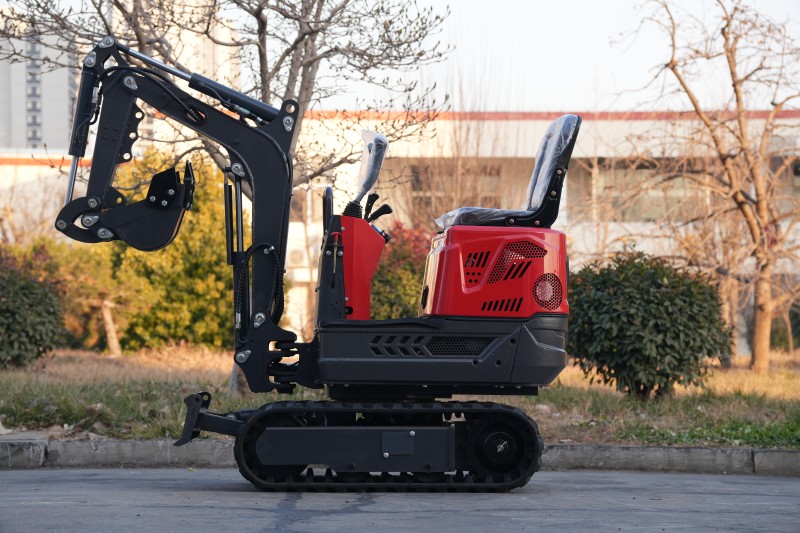

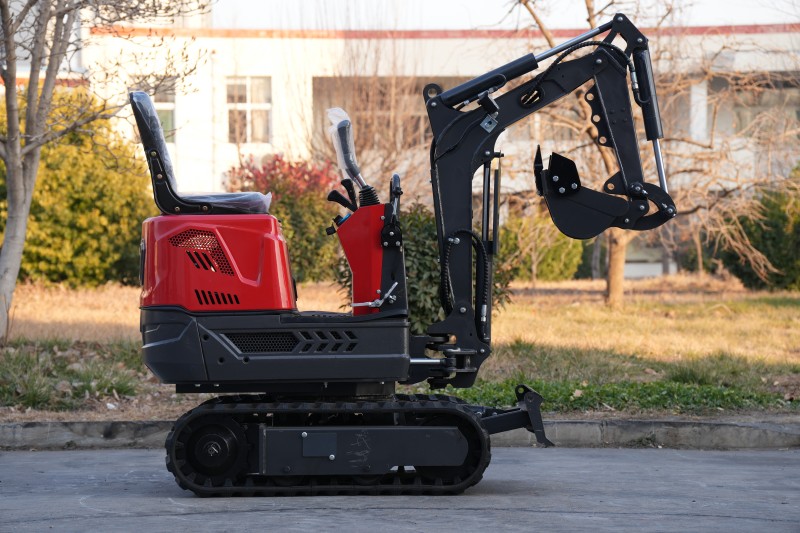

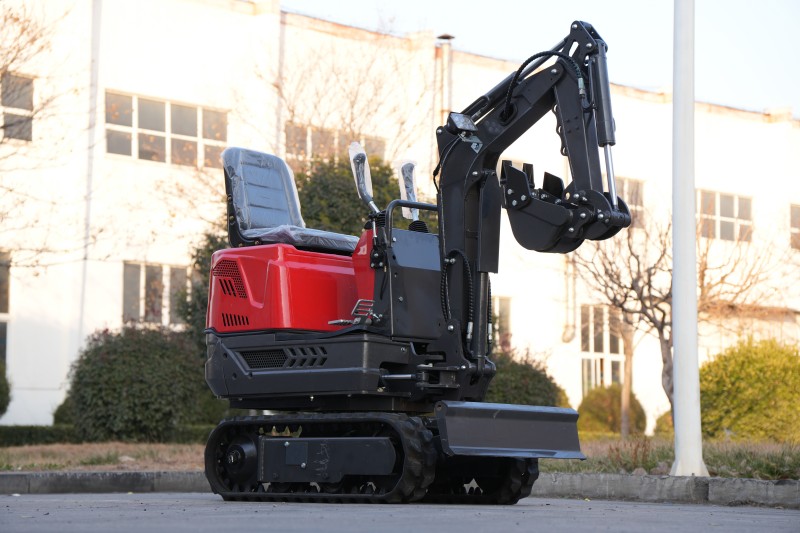

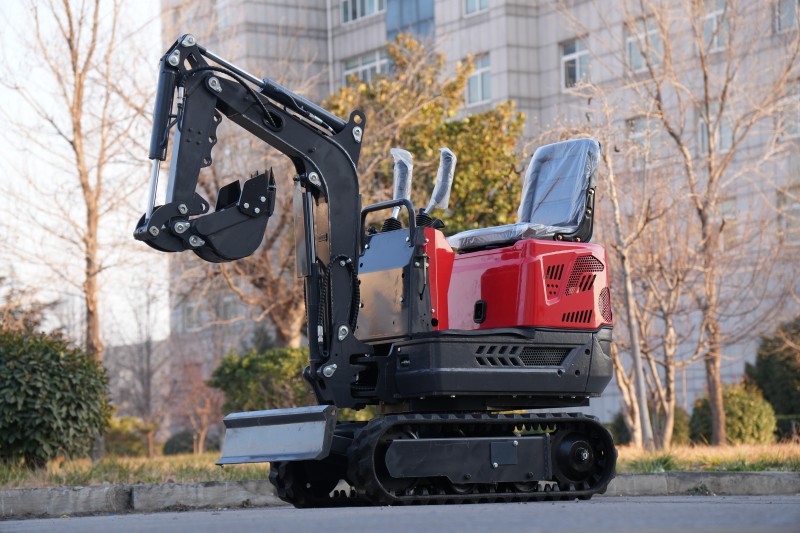

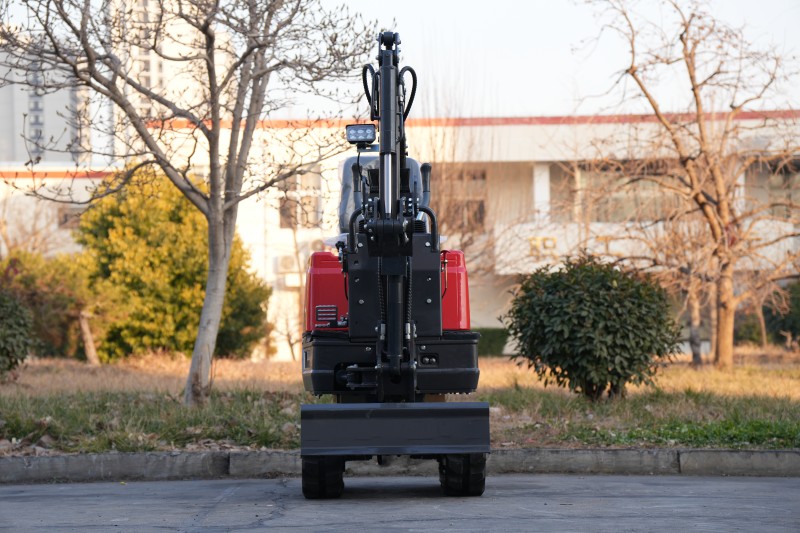

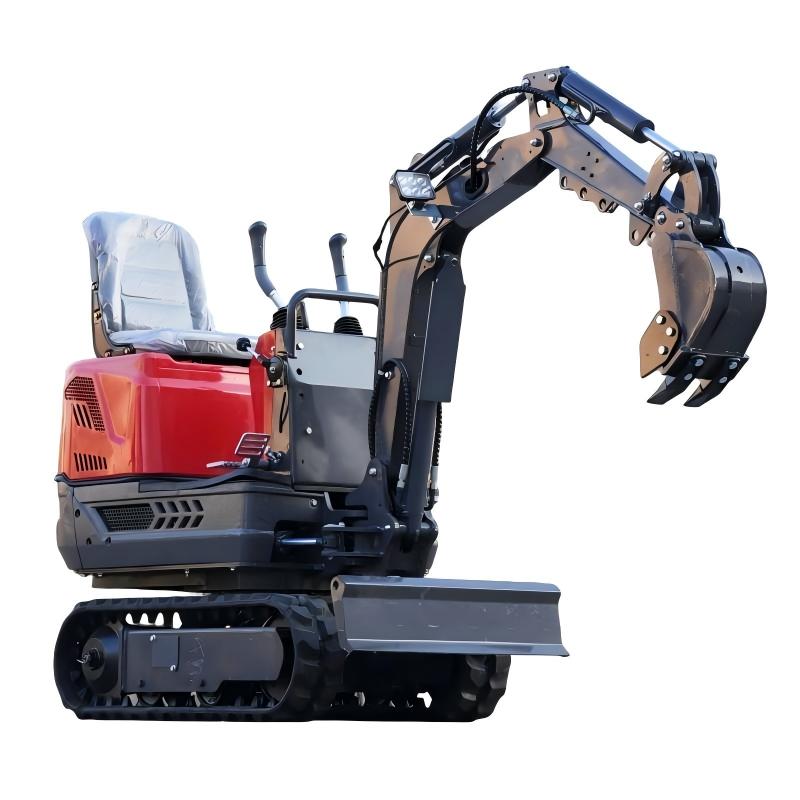

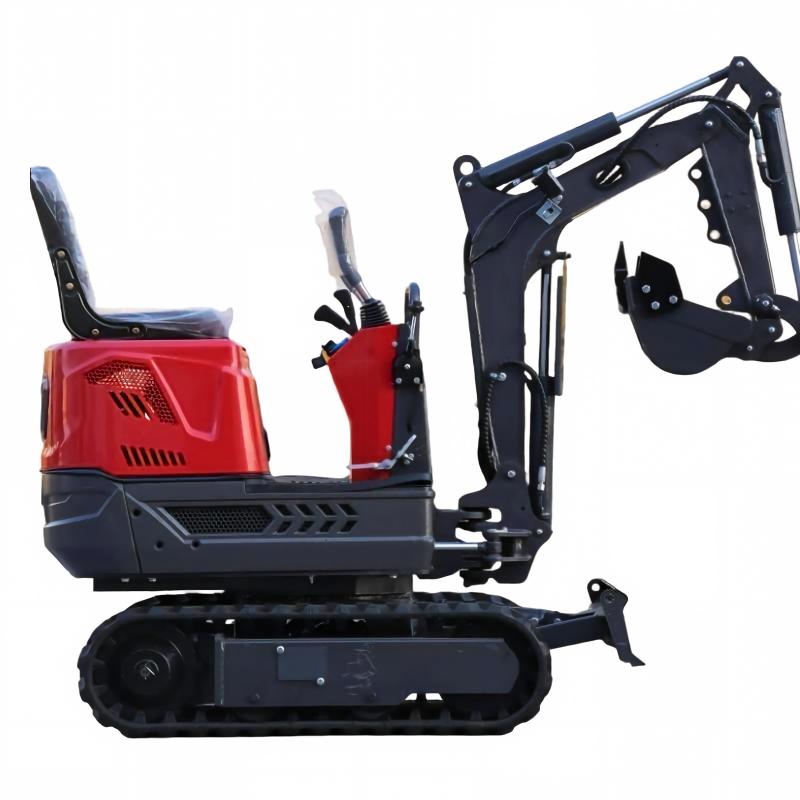

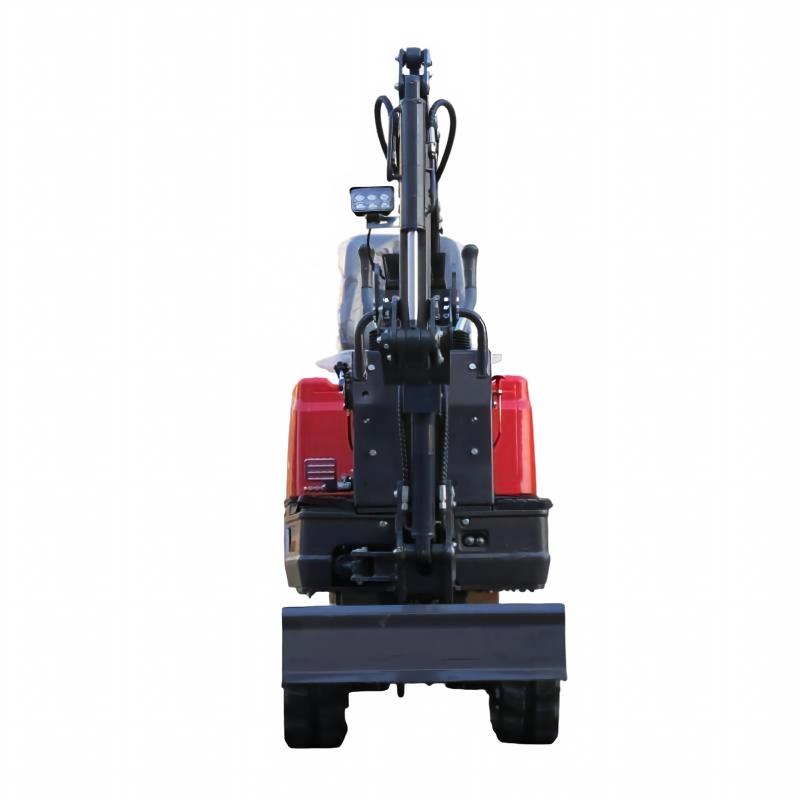

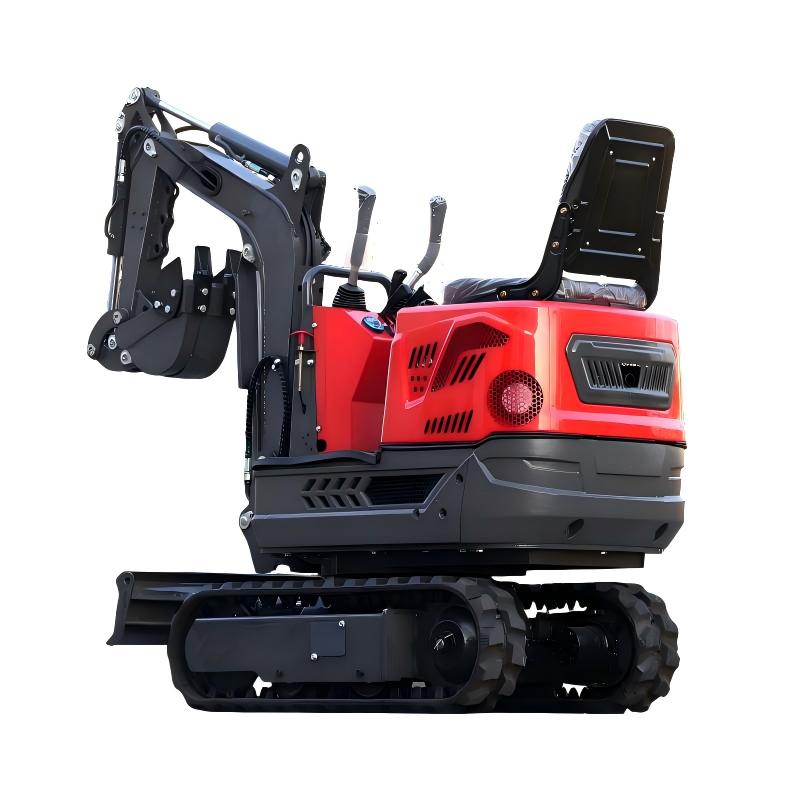

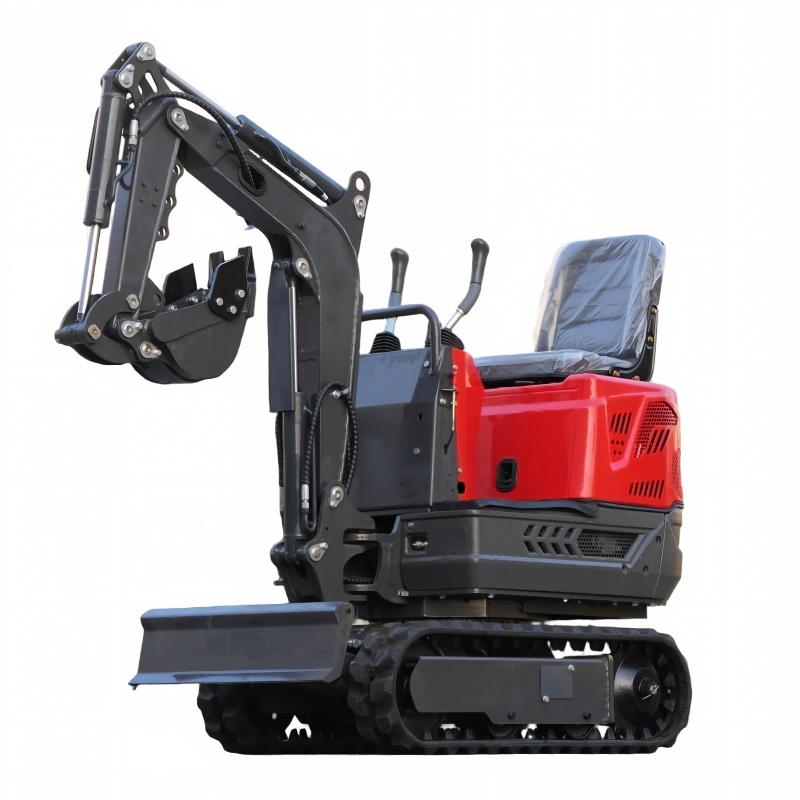

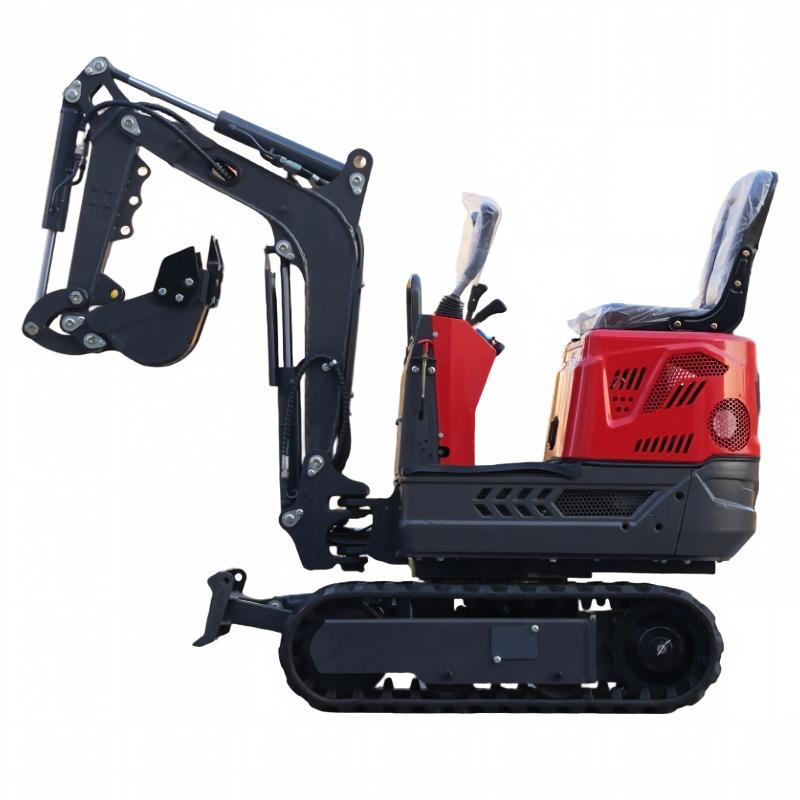

Mini Excavator
K06
The entire vehicle adopts a molded appearance,which is durable and in linewith public aesthetics.It is also convenient for maintenance and repair. Theentire vehicle is made of O355 manganese steel plate,Double gear pump andthe action is soft and efficient.
Weight
Engine
Pump
Call Us
+8619323138308Recommended Similar Products
Characteristic
Parameter
| Model | KV06 | E-Counterweight ground clearance(mm) | 355 |
| Operating weight | 650 | F-Min.ground clearance(mm) | 151 |
| Bucket capacity | 0.015 | G-Tailswing radius(mm) | 688 |
| Engine model | Loncin G300 | H-Track ground length(mm) | 1050 |
| Rated power (kw/r/min) | 6.8kW/3600rpm | J-Track length(mm) | 1120 |
| Hydraulic pump model | Double gear pump | K-Track gauge(mm) | 390 |
| Max.flow (L/min) | 20 | L-Track width(mm) | 690 |
| Working pressure(Mpa) | 15.6 | M-Track shoe width(mm) | 150 |
| Control valve model | Load Sensing Valves | N-Turntable width(mm) | 680 |
| Swing motor model | BM2 | O-Max.digging height(mm) | 2136 |
| Travel motor model | BM10-310 | P-Max.dumping height(mm) | 1408 |
| Fuel tank capacity (L) | 5.5 | Q-Max.digging depth(mm) | 1100 |
| Hydraulic oil tank capacity (L) | 13 | R-Max.vertical walldigging depth (mm) | 1100 |
| Travel speed(km/h) | 2 | T-Max.digging reach (mm) | 2267 |
| Swing speed(r/min) | 12 | U-Max.digging reach at ground level(mm) | 2267 |
| Max.climbing degree(%) | 50 | V-Min.swing radius(mm) | 1177 |
| A-Overall length (mm) | 1866 | X-Distance between center of rotation and tail length (mm) | 688 |
| B-Overall width(mm) | 690 | Y-Track shoe thickness(mm) | 一 |
| C-Overall height(to top of boom)(mm) | 1657 | Deflection angle left°/right° | 75/57° |
| D-Overall height(to top of cab)(mm) | 2200 |
