Bulldozer cylinder protection plate
The bulldozer cylinder is equipped with a protective plate to protect the cylinder from damage during operation.
-
Two-speed walking motor
Plunger motor, two-speed travel, the motor has a protective shell, the travel speed is 2.3Km-4.6Km/h, and the hydraulic oil pipe has added protection
-
Newly upgraded stop valve
The newly upgraded way stop valve.
-
Travel and control devices
The newly upgraded traveling rod is equipped with a dust cover; the side-swing foot-operated operation is convenient and labor-saving; the breaker control device operates in both directions, and can be replaced with a hydraulic thumb clamp and hydraulic quick changer
-
Instrument panel
The instrument panel display screen can display working hours, fuel volume, water temperature, oil pressure, battery voltage, etc., making it easy to observe the health of the machine.
-
Oil cylinder mounted on top
The newly upgraded oil cylinder is above the boom to prevent the oil cylinder from being bumped during work,the hidden oil pipe design makes the appearance neat and beautiful.
-
Adjustable track
no tail design.
-
Swing boom
Standardbig arm side swing function,cast iron side swina head. beautiful and durable
-
Electronical ly controlled hydraulic pilot handle
Electronically controlled hydraulic pilot handle, which can control chassis telescopic and electronic horn
-
Hydraulic safety lock
1. Hydraulic safety lock to ensure safe operation 2. Large tilt angle makes it easier to get on and off the vehicle
-
Openable on three sides
The back cover can be opened for easy maintenance and repair.
-
The entire vehicle adopts a molded appearance
The entire vehicle adopts a molded appearance, which i p s ub d l u i r c ab a l e e st a h n e d t i i n cs l . in I e t wi i t s h also convenient for maintenance and repair. It has a four-leg anti-roll roof. The entire vehicle is made of Q355 manganese steel plate, variable plunger pump, load-sensitive multi-way valve, and the action is soft and efficient.

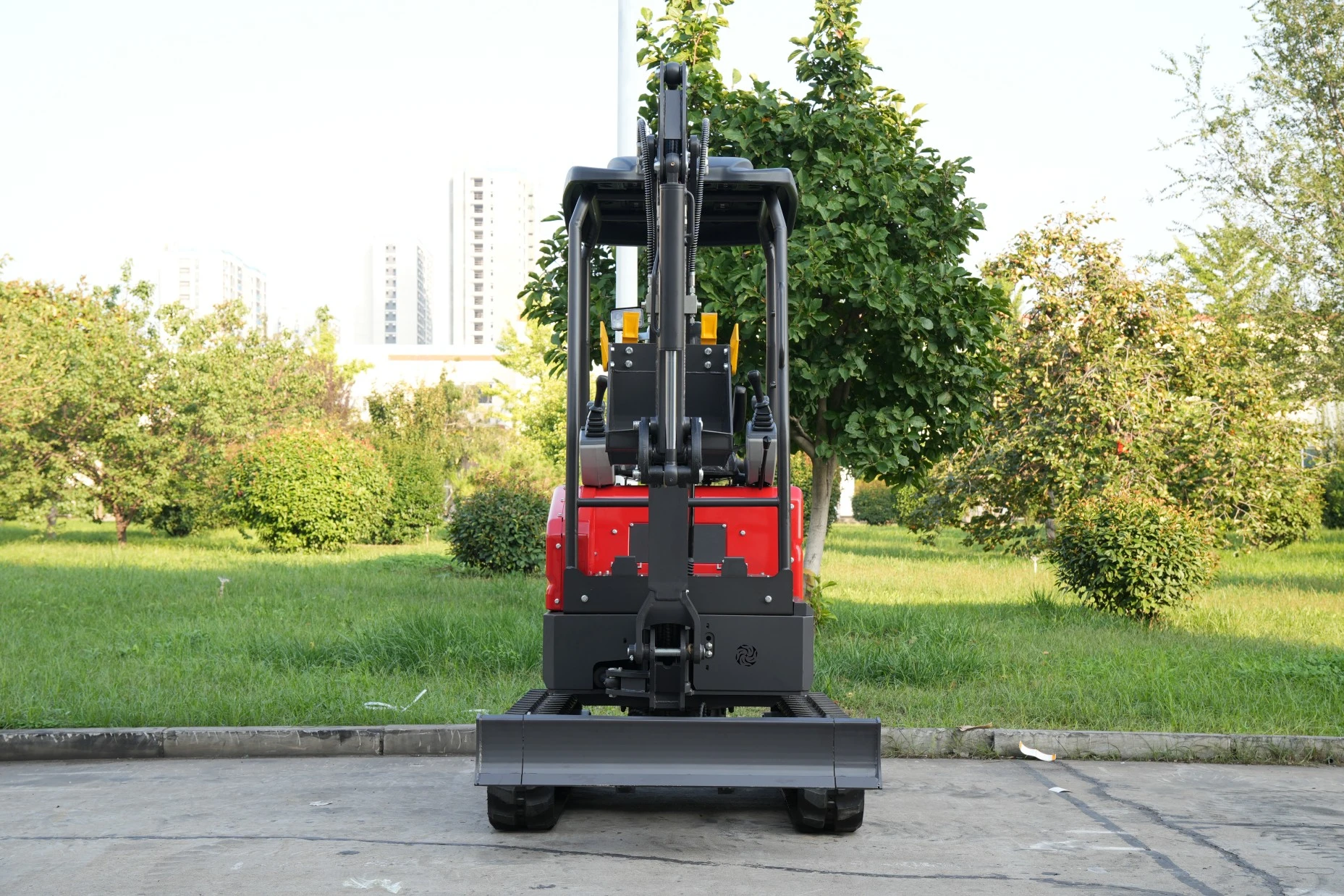

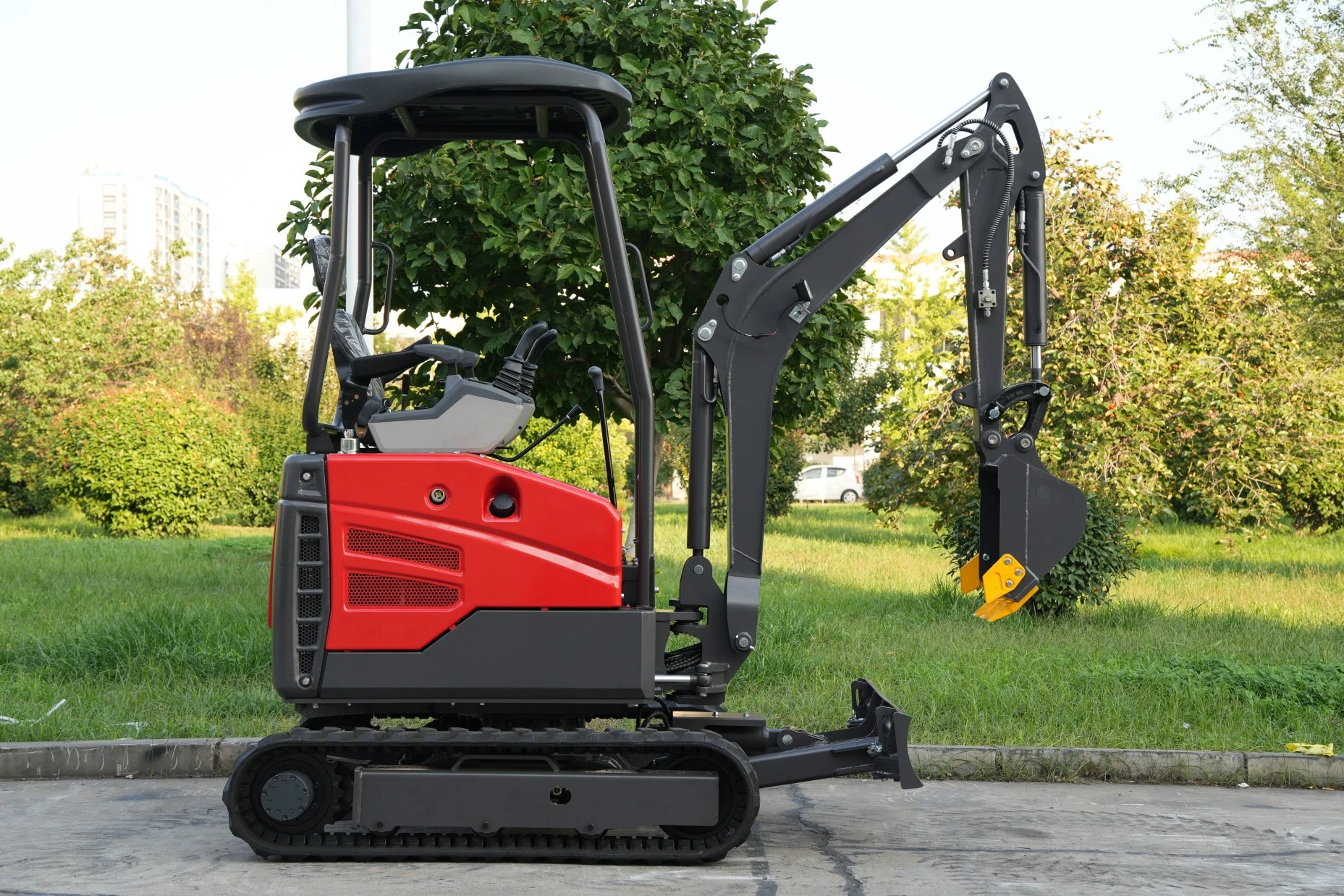

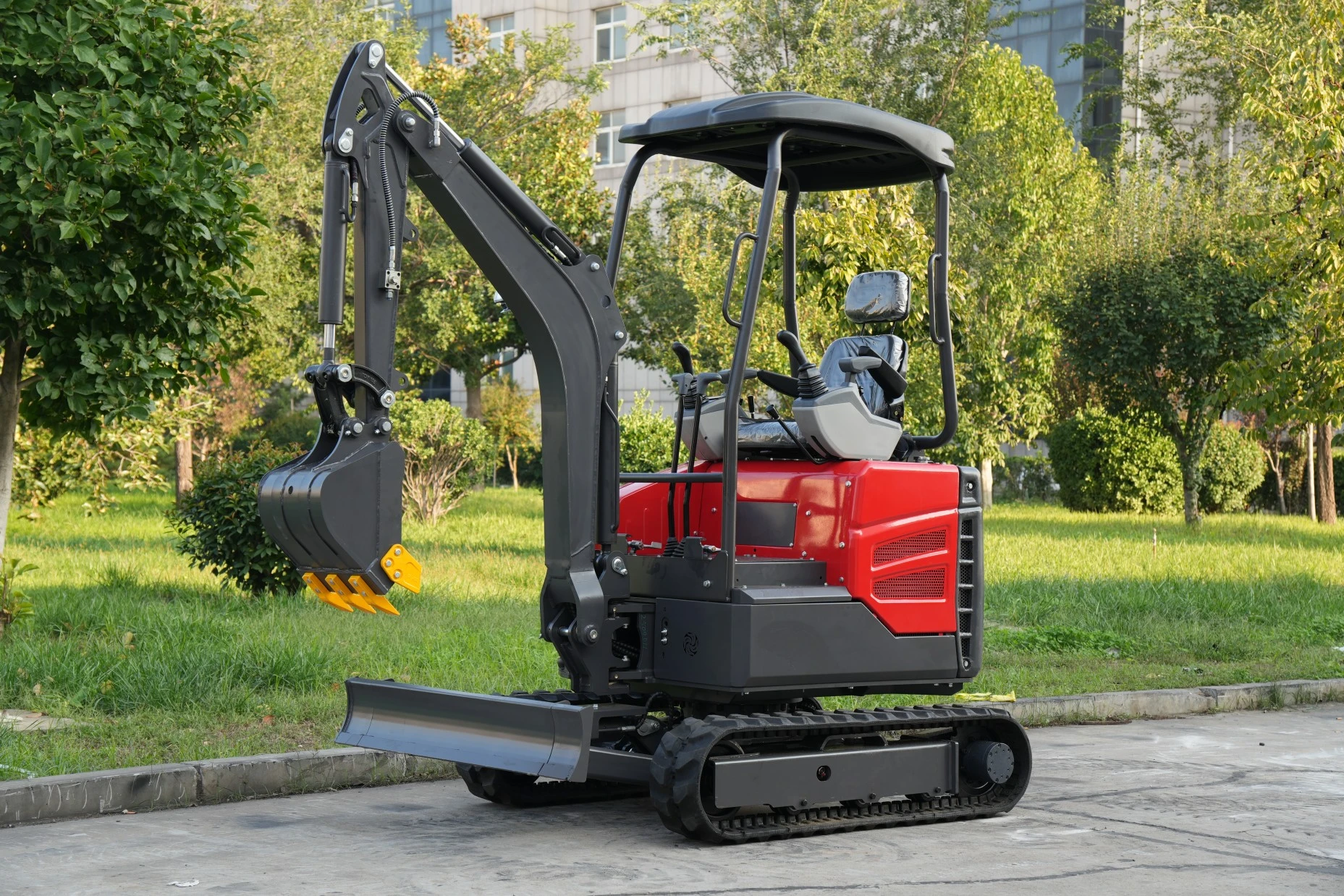

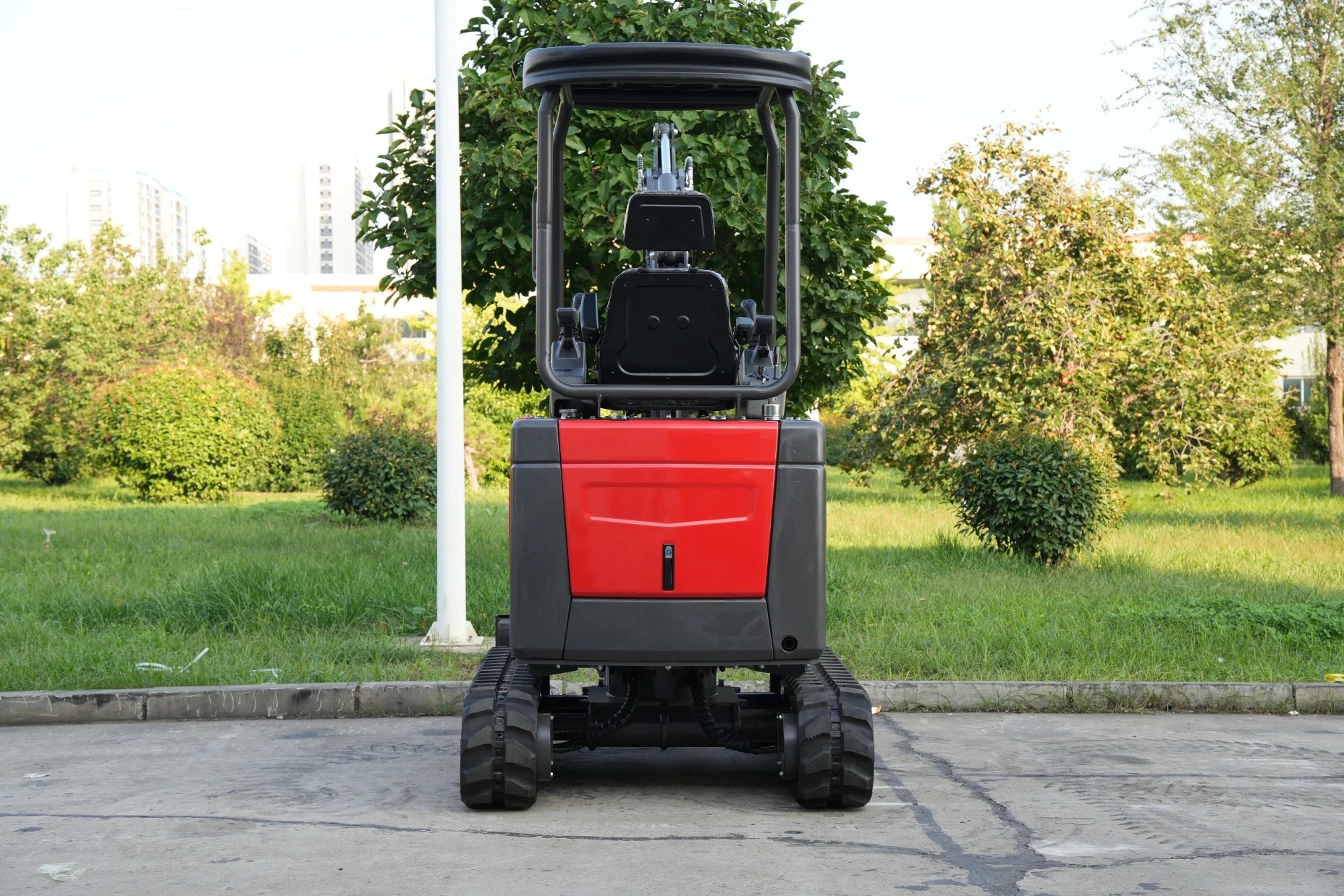

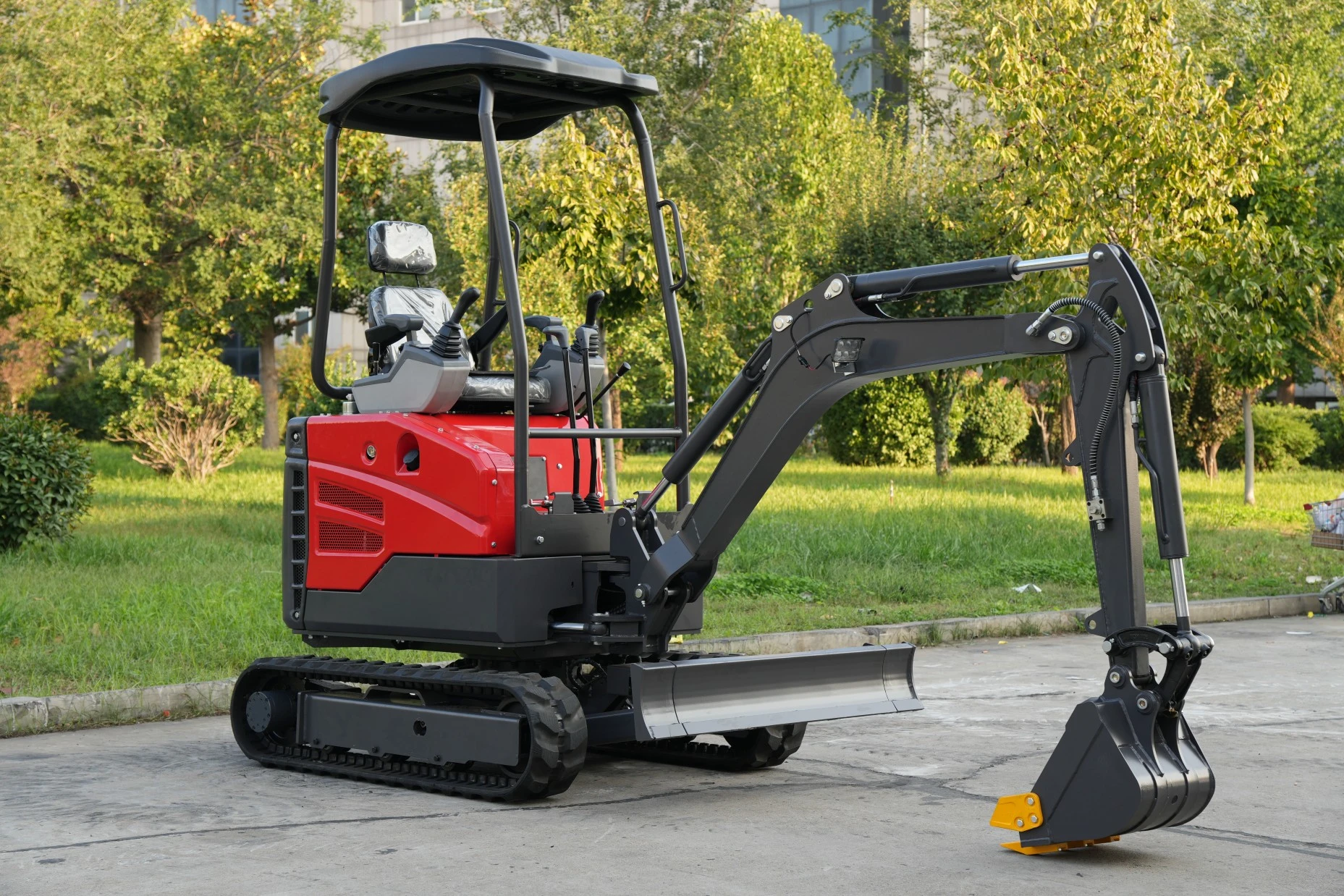

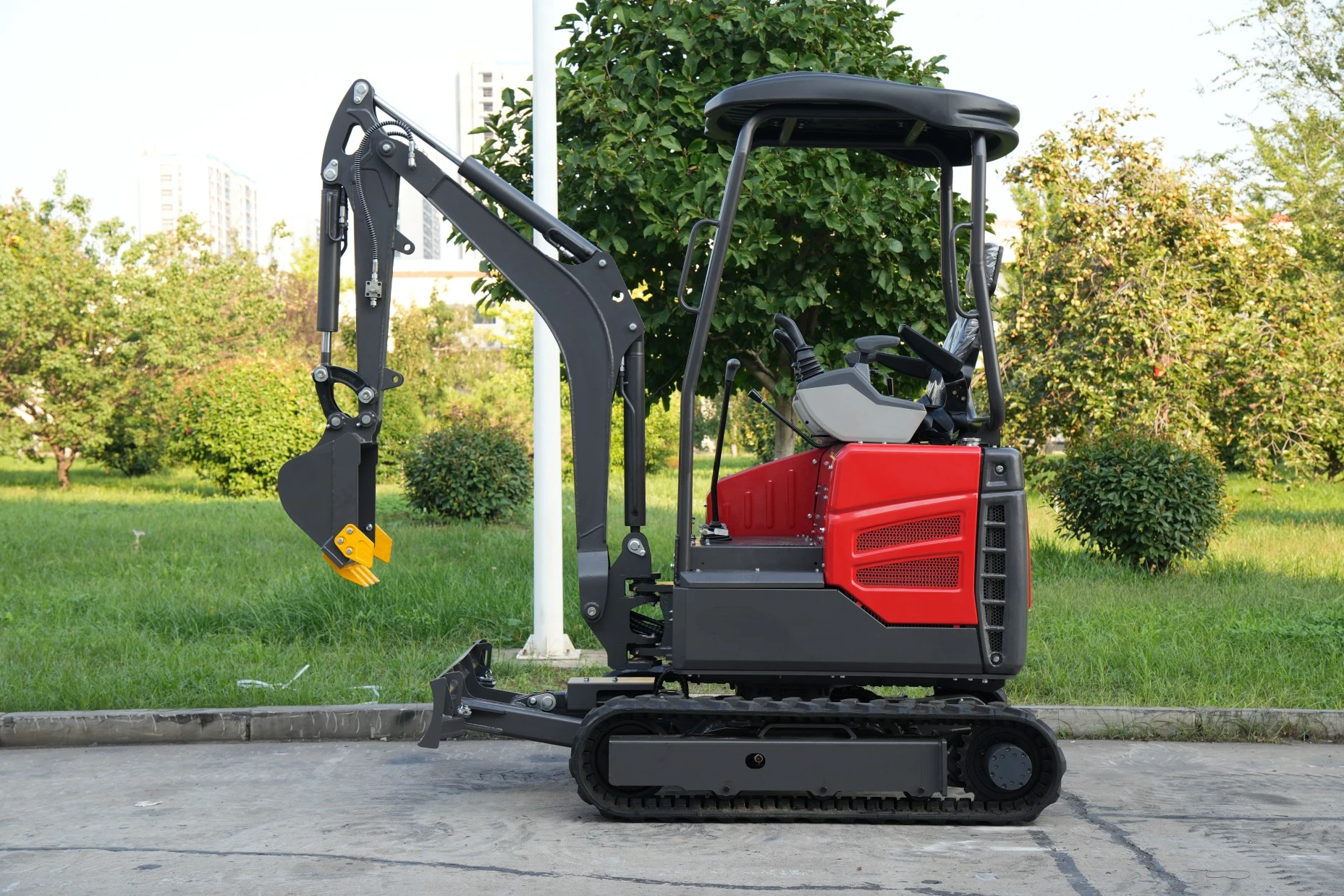

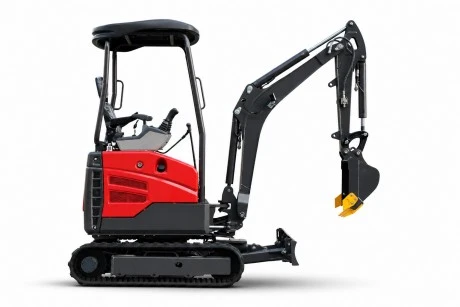

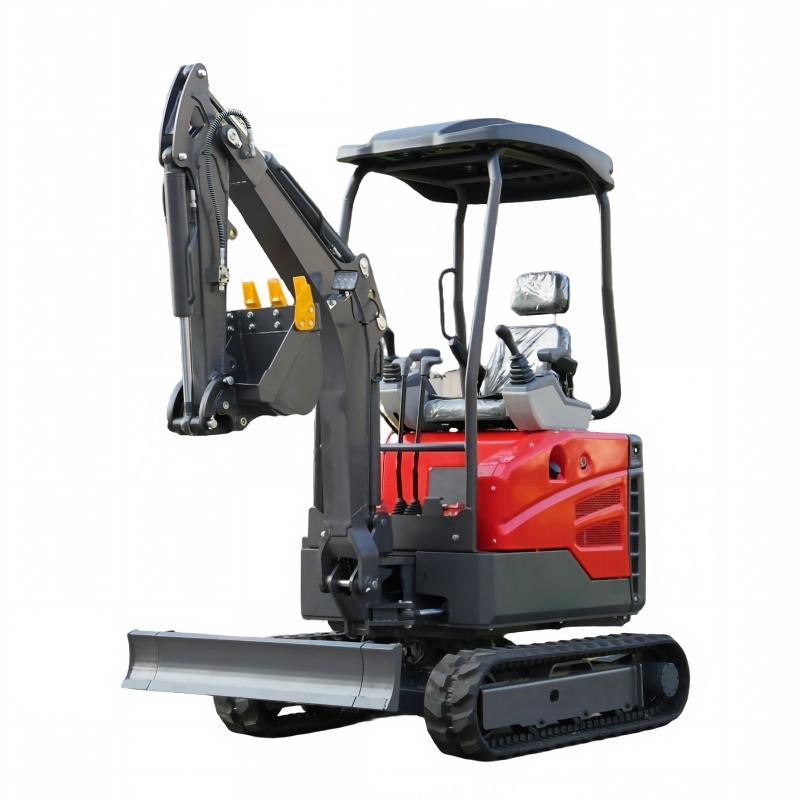

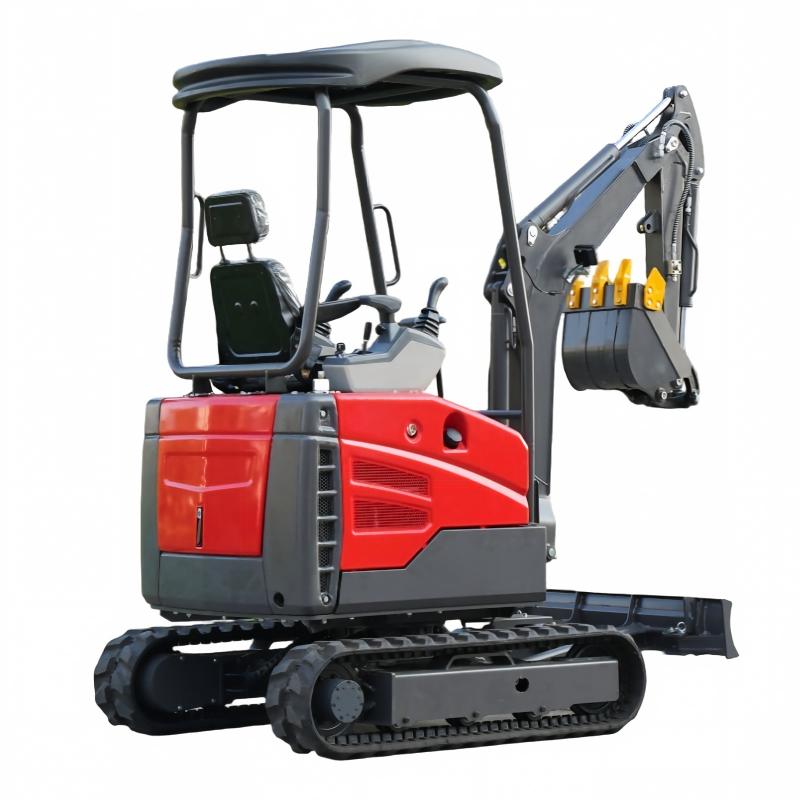

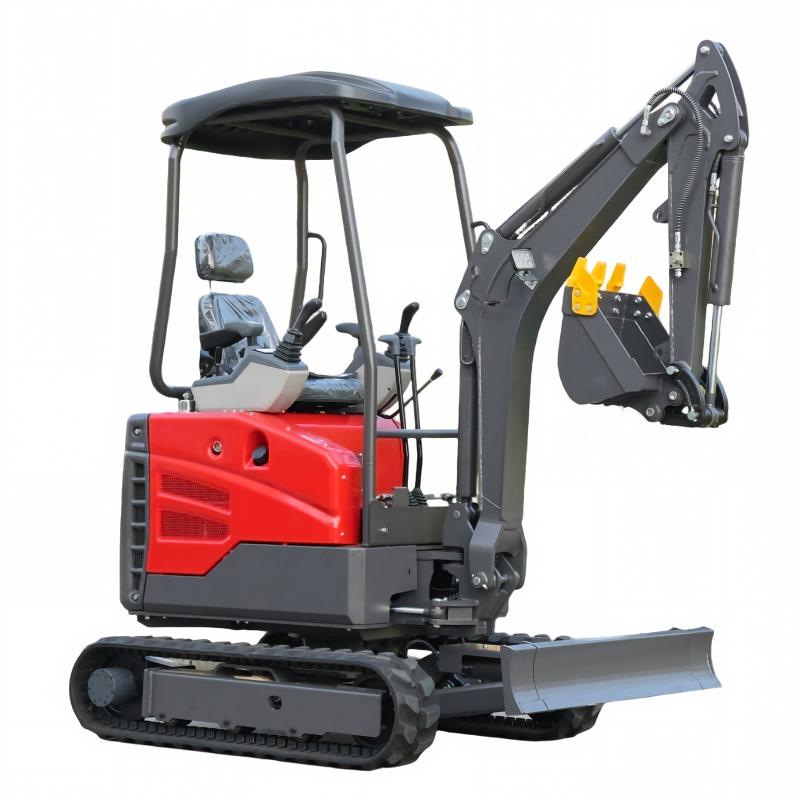

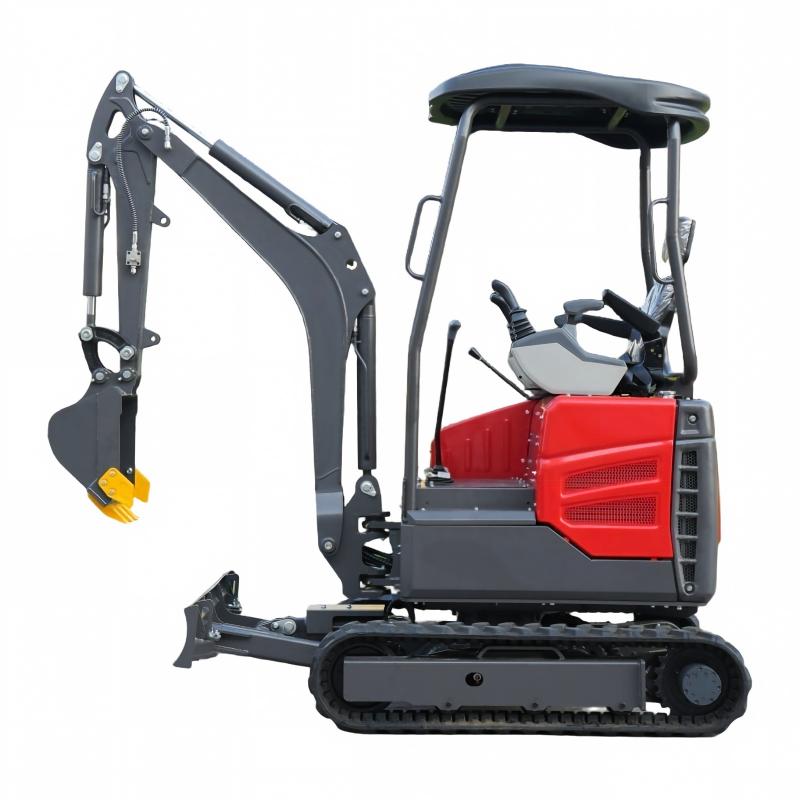

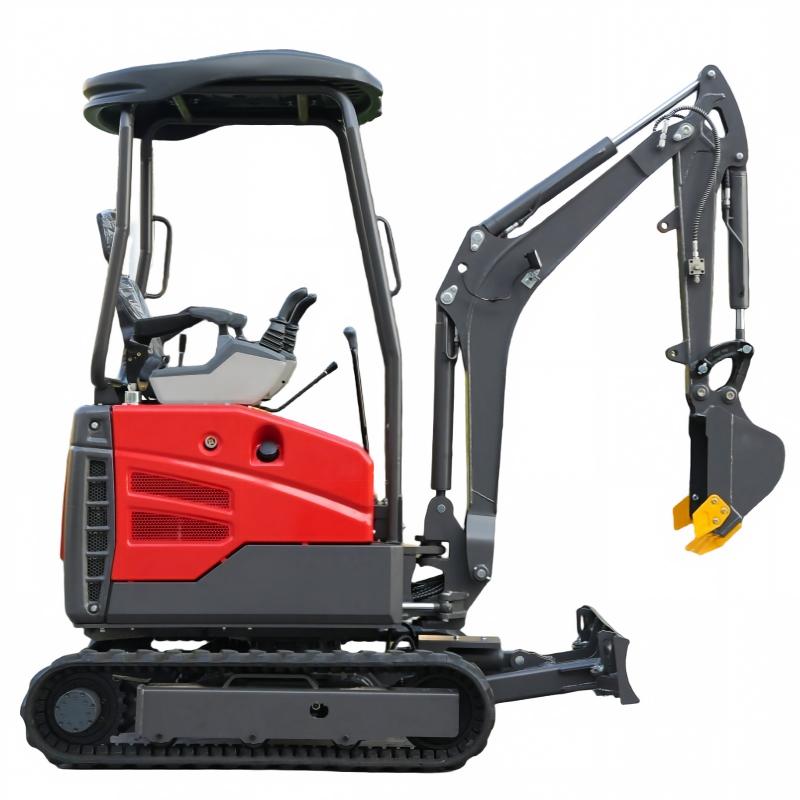

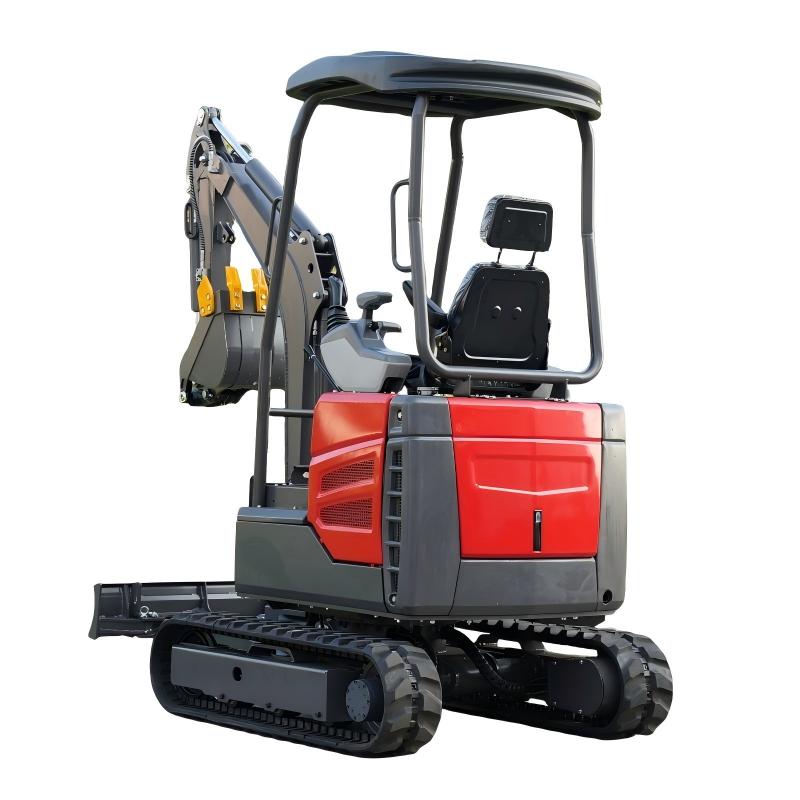

Mini Excavator
K20
The entire vehicle adopts a molded appearance, which i p s ub d l u i r c ab a l e e st a h n e d t i i n cs l . in I e t wi i t s h also convenient for maintenance and repair. It has a four-leg anti-roll roof. The entire vehicle is made of Q355 manganese steel plate, variable plunger pump, load-sensitive multi-way valve, and the action is soft and efficient.
Weight
Engine
Pump
Call Us
+8619323138308K20.pdf
Get A Quote
Recommended Similar Products
Characteristic
Parameter
| Model | KV20 | F-Min.ground clearance(mm) | 80 |
| Operating weight | 1850 | G-Tail swing radius(mm) | 821 |
| Bucket capacity | 0.04 | H-Track ground length(mm) | 1250 |
| Engine model | Kubota D902/Laidong 380 | J-Track length (mm) | 1393 |
| Rated power(kw/r/min) | 11.8kw/18.1kw | K-Track gauge(mm) | 640(840extend backward |
| Hydraulic pump model | piston pump | L-Track width(mm) | 980-1280 |
| Max.flow(L/min) | 38 | M-Track shoe width(mm) | 180 |
| Working pressure(Mpa) | 19.5 | N-Turntable width(mm) | 820 |
| Control valve model | Load Sensing Valves | O-Max.digging height(mm) | 2771 |
| Swing motor model | BM5 | P-Max.dumping height(mm) | 1917 |
| Travel motor model | Two-speed motor | Q-Max.digging depth(mm) | 1665 |
| Fuel tank capacity (L) | 20 | R-Max.vertical wall digging depth(mm) | 2300 |
| Hydraulic oil tank capacity(L) | 20 | T-Max.digging reach(mm) | 3189 |
| Travel speed(km/h) | 1.8-4.0 | U-Max.digging reach at ground level(mm) | 3189 |
| Swing speed (r/min) | 12 | V-Min.swing radius(mm) | 1387 |
| Max.climbing degree(%) | 58 | X-Distance between center of rotation and tail length (mm) | 821 |
| A-Overall length(mm) | 2880 | Y-Track shoe thickness(mm) | 一 |
| B-Overall width(mm) | 980-1280 | Z-Height of counterweight(mm) | 480 |
| C-Overall height (to top of boom)(mm) | 2118 | Deflection angle left/right° | 56°/57° |
| D-Overall height (to top of cab)(mm) | 2265 | Maximum dozing height/depth (mm) | 185/226 |
| E-Counterweight ground clearance(mm) | 430 |
