Upper arm lateral swing (optional)
Standard small excavators struggle to reach wall bases. Boom offset extends the bucket beyond the tracks to dig along walls, curbs, fences, and pipes, reducing manual trimming.
-
The seat can be lifted up.
Simply lift the seat to check the engine—no floor or seat removal, no crawling underneath—making inspections and maintenance faster.
-
Machine Operation
Machine operation maintains consistent stability, thereby enhancing efficiency.
-
Rubber tracks
Rubber tracks can effectively reduce compaction and damage to lawns, paved surfaces, and soil.
-
Independent diesel tank
Diesel fuel and hydraulic oil are kept separate. The diesel tank is dedicated solely to supplying fuel to the engine, while the hydraulic tank serves the hydraulic system. Separating them reduces the risks of misfueling, accidental mixing, and cross-contamination, and also makes it easier to manage each type of fluid individually.

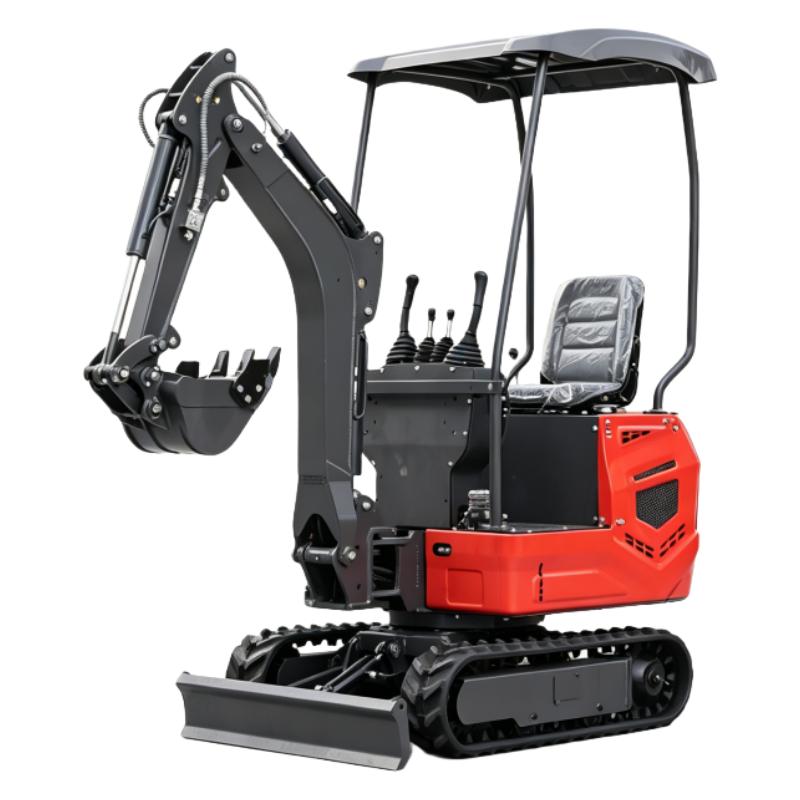

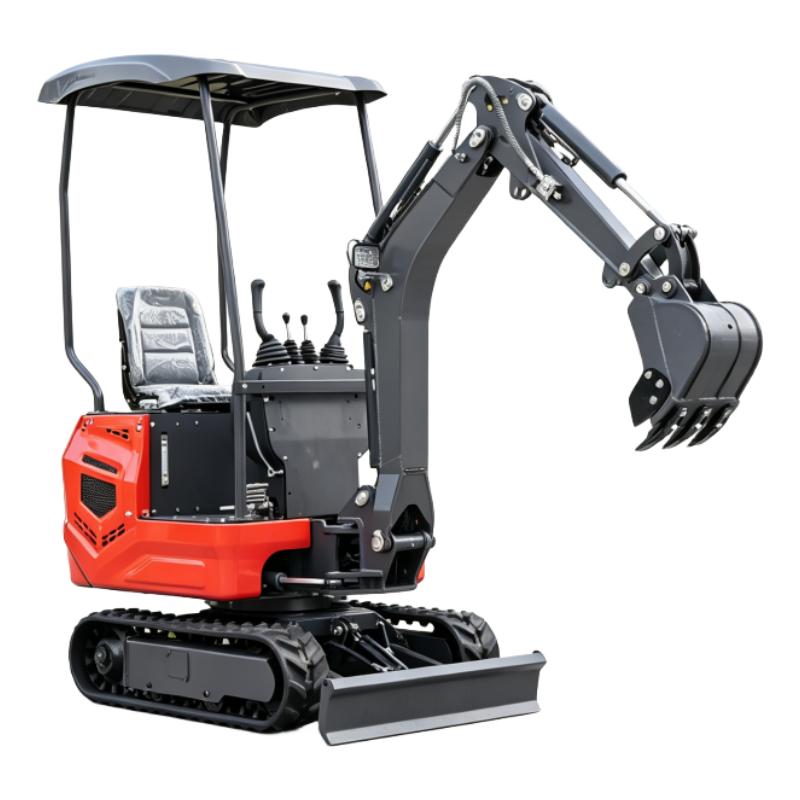

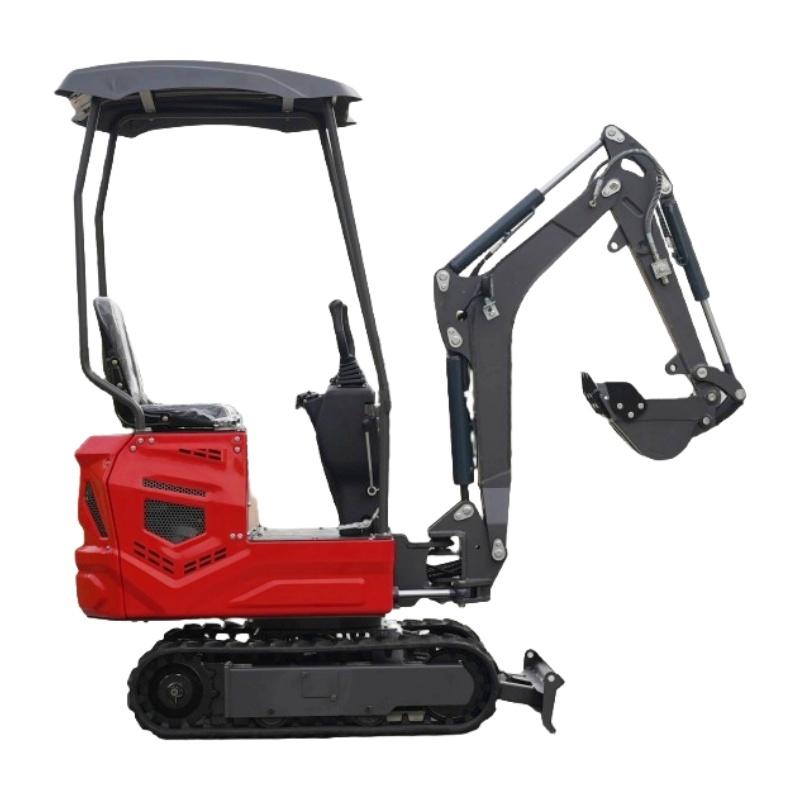

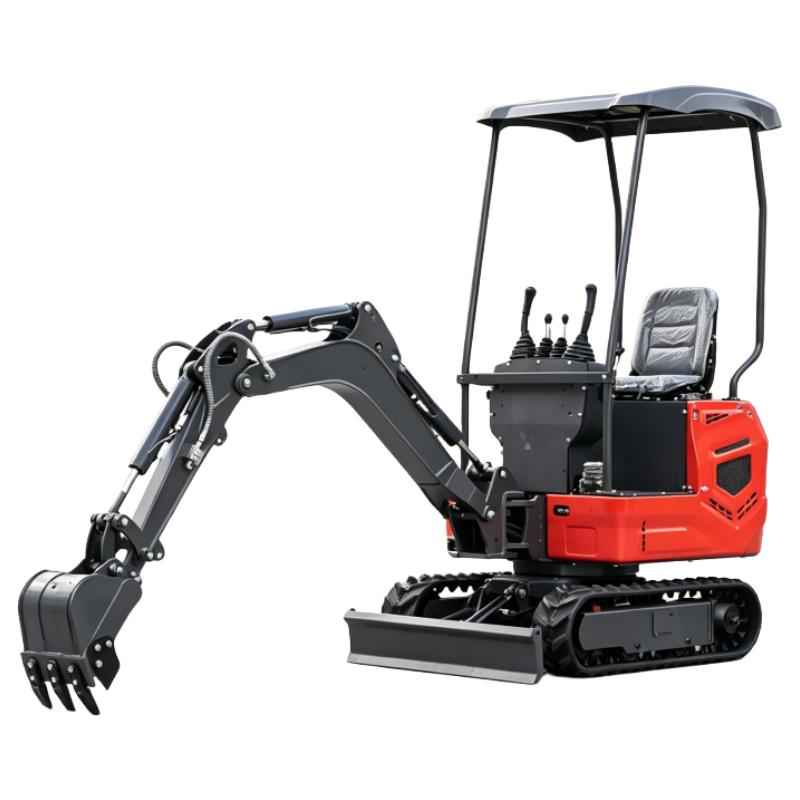

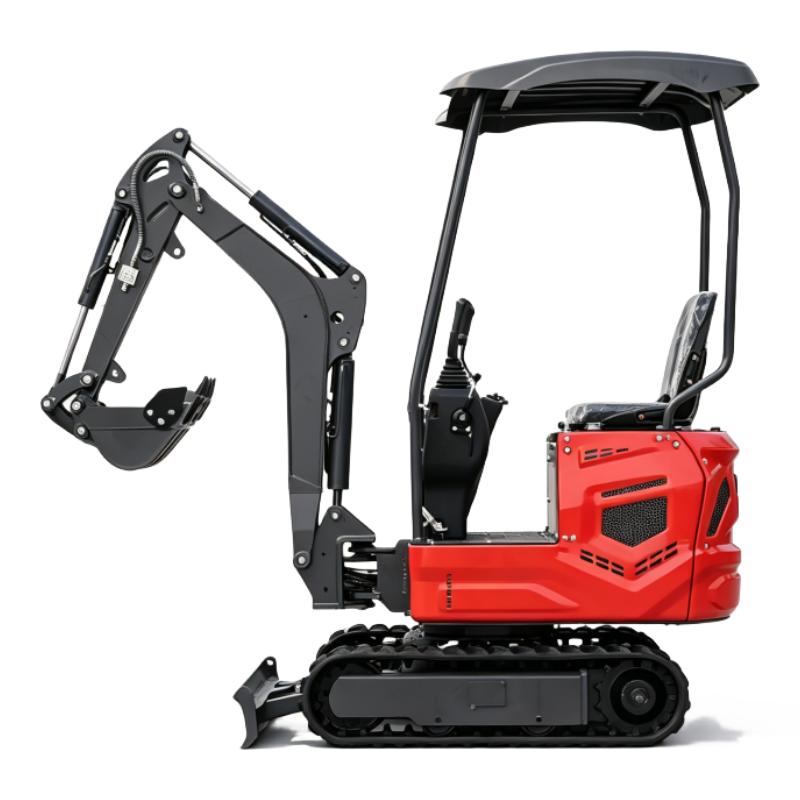

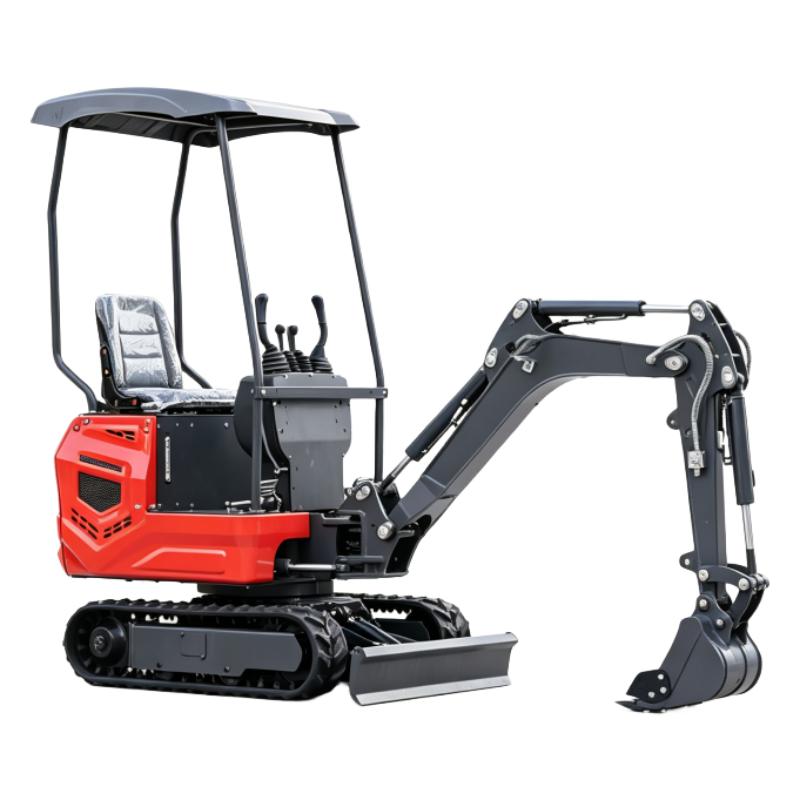

Mini Excavator
KV12
Compact, agile, and built for confined spaces, this multifunctional machine is ideal for orchards, greenhouses, farmland renovation, municipal maintenance, indoor demolition, landscaping, and yard construction. It works easily in corners, narrow alleys, and along ditches, replacing manual digging, trenching, leveling, and breaking—perfect for agriculture and small construction.
Weight :
1000KG
Engine :
HPR 192F/Kubota D722
Pump :
Single gear pump
Call Us
+8619323138308Product Manual
Get A Quote
Recommended Similar Products
Characteristic
Parameter
| Working weight | 1000mm | Maximum digging height | 2657mm |
| Bucket capacity | 0.025m³ | Maximum dumping height | 2010mm |
| Engine | HPR 192F/Kubota D722 | Maximum digging depth | 1598mm |
| Engine power | 7.6KW | Maximum ground excavation depth: | 2976mm |
| Work pressure | 16MPa | Maximum excavation distance | 2976mm |
| Upper structure width | 900mm | Minimum swing radius | 1478mm |
| Counterweight ground clearance | 390mm | Left/Right swing angle | 60°/57.5° |
| Fuel tank capacity | 9L | Hydraulic oil tank capacity | 13L |
| Tail swing radius | 834mm | Track width | 180mm |
