Thickened, high-quality steel body
The main body is constructed from thickened steel with a powder-coated finish, offering rust and corrosion resistance suitable for harsh outdoor operating conditions characterized by high humidity and dust.
-
Easy to operate
Low barrier to control; easy for beginners to pick up.
-
360° stationary turn
The machine body rotates freely, eliminating the need for extra space to turn around in confined areas and significantly boosting operational efficiency during site transitions.
-
Compact and agile body
The machine features a compact design, making it suitable for operations in confined spaces inaccessible to large machinery—such as basements, courtyards, indoor renovation sites, narrow alleyways, greenhouses, and warehouses.
-
High-quality travel motor
It delivers powerful output and high transmission efficiency, offering strong acceleration from a standstill and stable power under load; it features a low failure rate and enhanced overall durability.
-
High-efficiency hydraulic oil cooler
Provides continuous, stable heat dissipation during prolonged operation, preventing the hydraulic system from overheating, reducing malfunctions, and extending the service life of hydraulic components; suitable for high-frequency, continuous construction operations.
-
High-stability triangular rubber tracks
The triangular track structure ensures balanced ground contact and excellent shock absorption; the rubber tracks do not damage concrete, tiled surfaces, or lawns, making the machine suitable for both indoor and outdoor use, while providing stability and slip resistance when climbing slopes or traversing complex terrain.

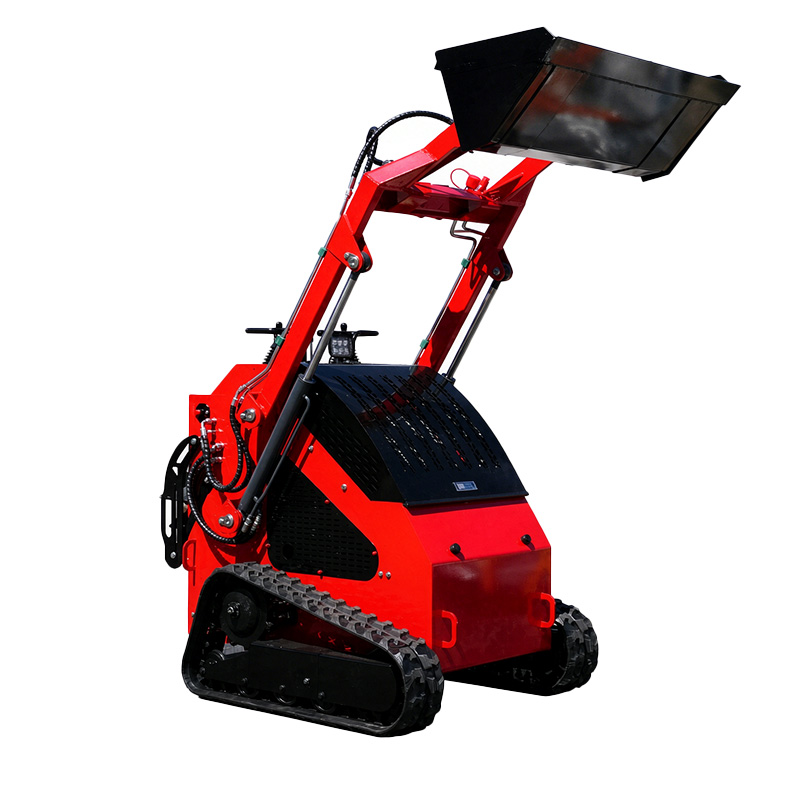

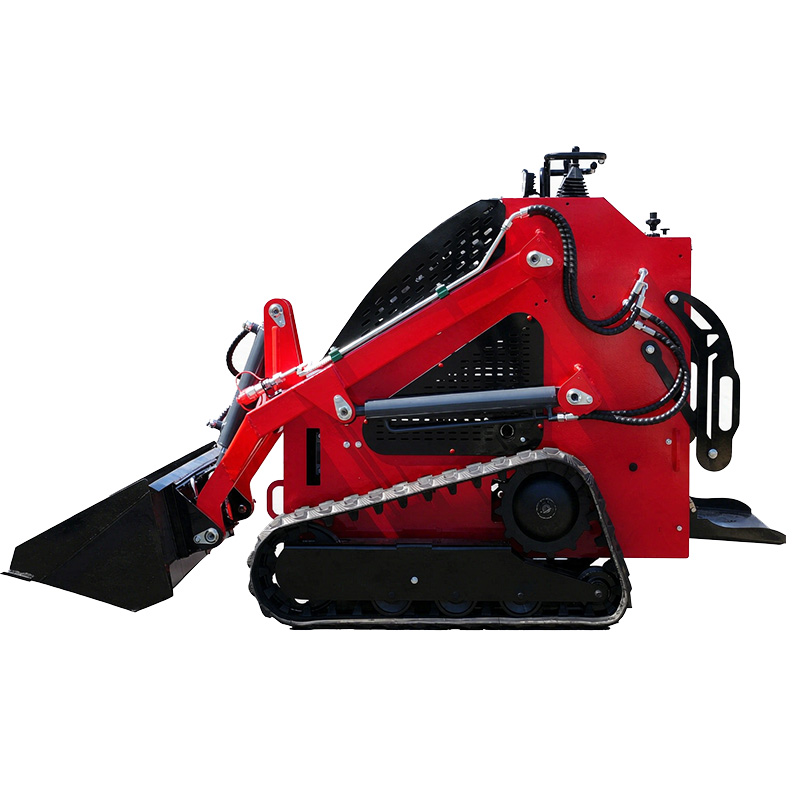

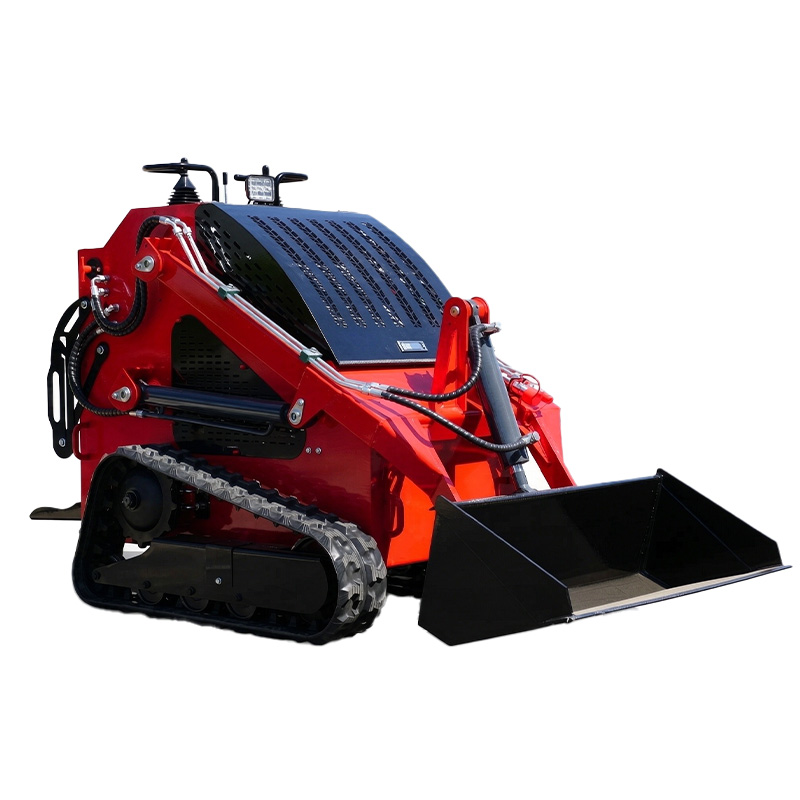

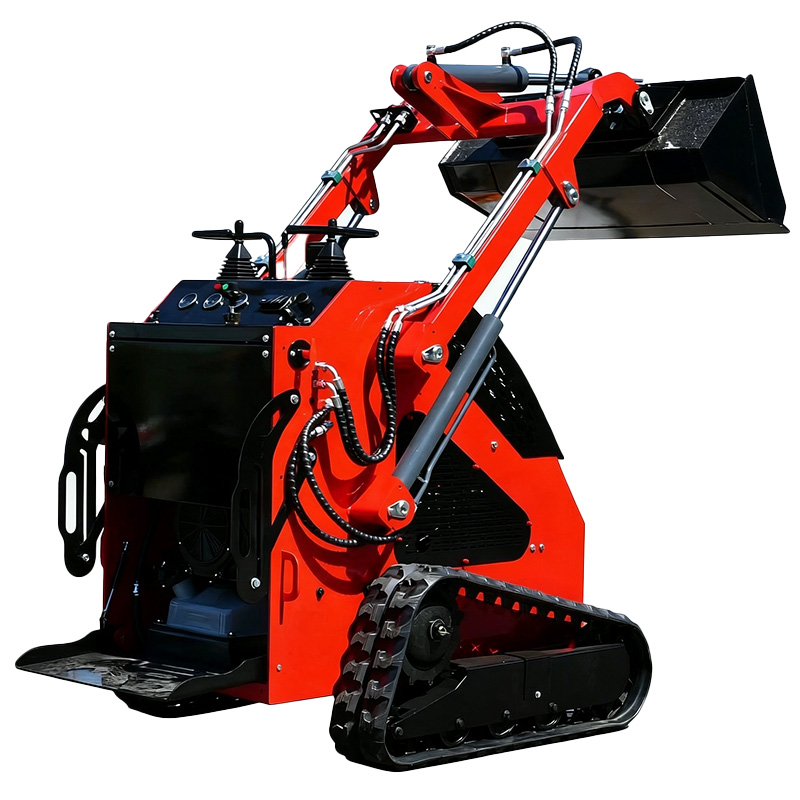

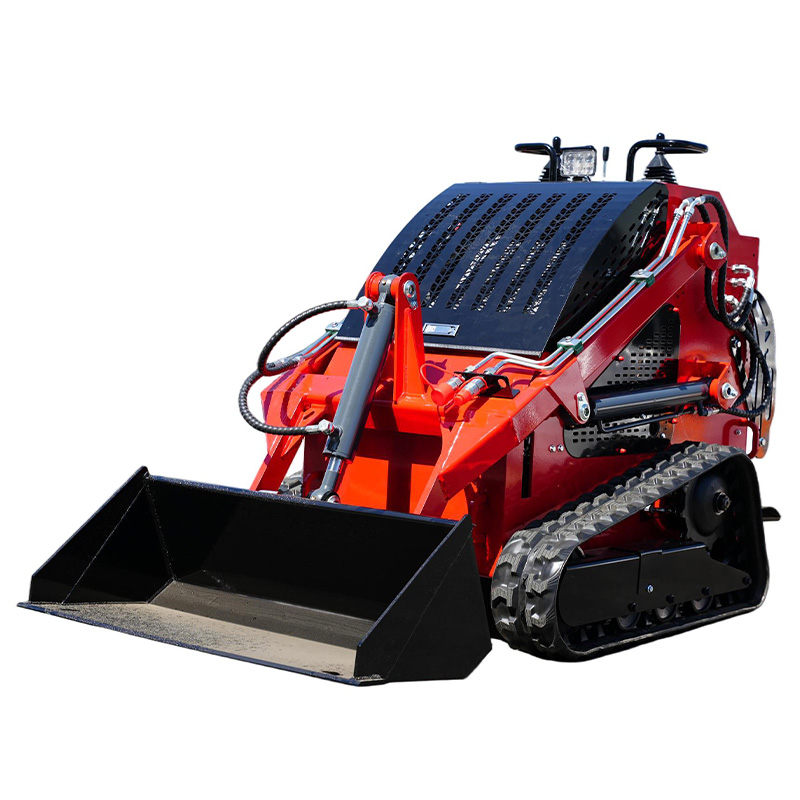

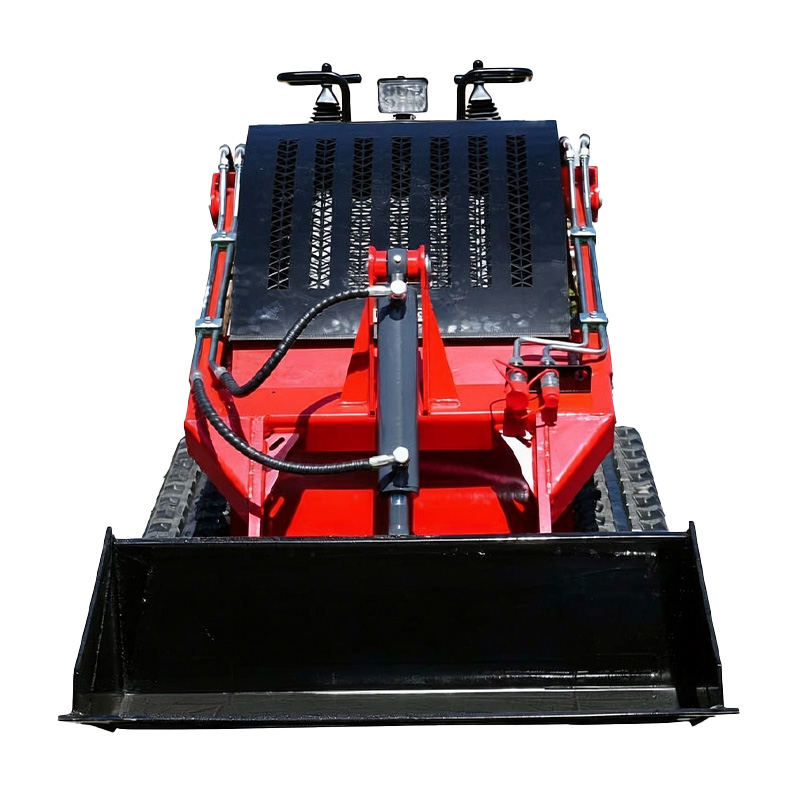

Skid Steer Loader

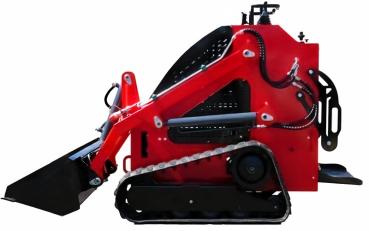

KC360
It is primarily used in settings characterized by confined workspaces, uneven terrain, and frequently changing operational tasks. It is suitable for infrastructure construction, industrial applications, port loading and unloading, urban streets, residential areas, barns, livestock facilities, and airport runways, and can also serve as auxiliary equipment.
Rated Load :
200KG
Bucket Capacity :
0.1m³
Engine and Power :
Koop 7.6 kW / Rato 7.9 kW / B&S 9.92 kW
Call Us
+8619323138308Product Manual
Get A Quote
Recommended Similar Products
Characteristic
Parameter
| Overall Machine Size | 2092*1050*1300mm | Rated Pressure | 16MPa |
| Operation Quality | 941kg | Bucket Width | 1050mm |
| Climbing Ability | 25° | Ground Clearance | 173mm |
| Maximum Rising Power | 3.5KN | Unloading Distance | 250mm |
| Rated Load | 200kg | Track Ground Length | 900mm |
| Maximum Load | 300kg | Including Bucket Length | 2092mm |
| Driving Speed | 0-6km/h | Track Model | 180*72*35 |
| Body Width | 910mm | Cylinder | 1 |
