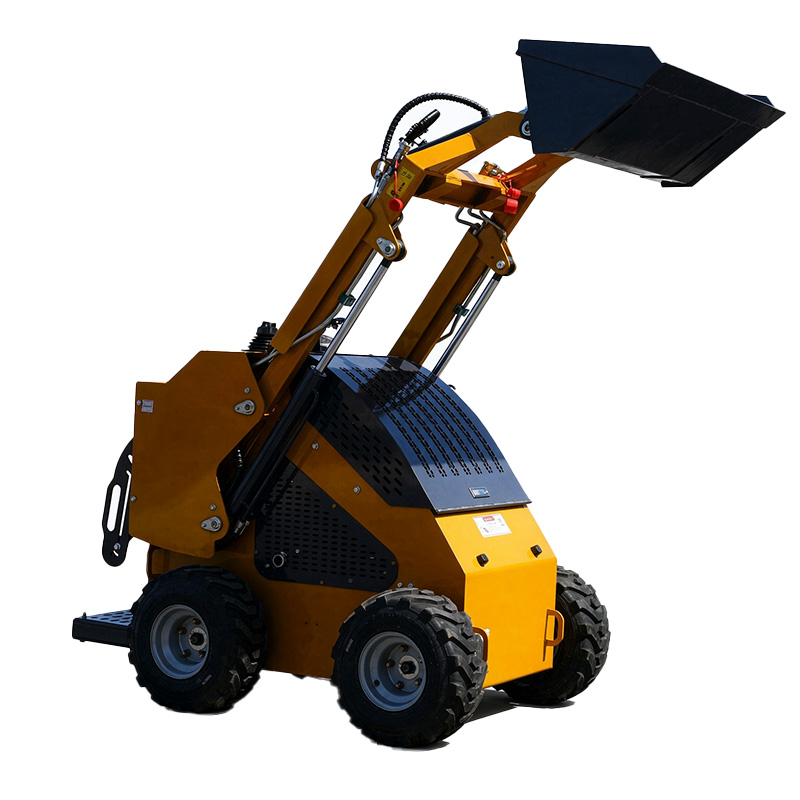

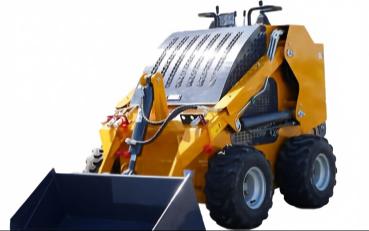

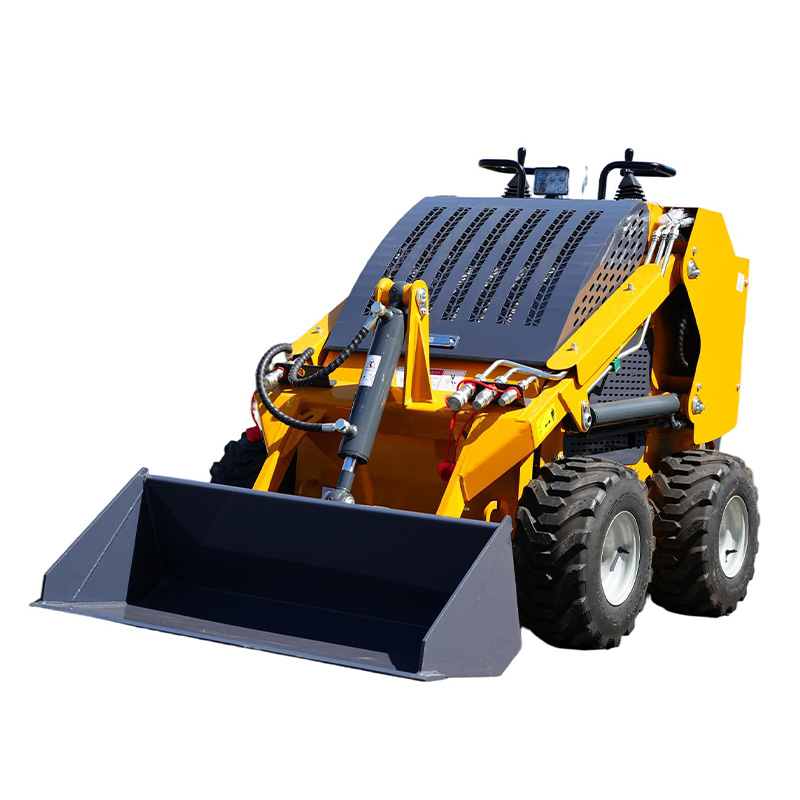

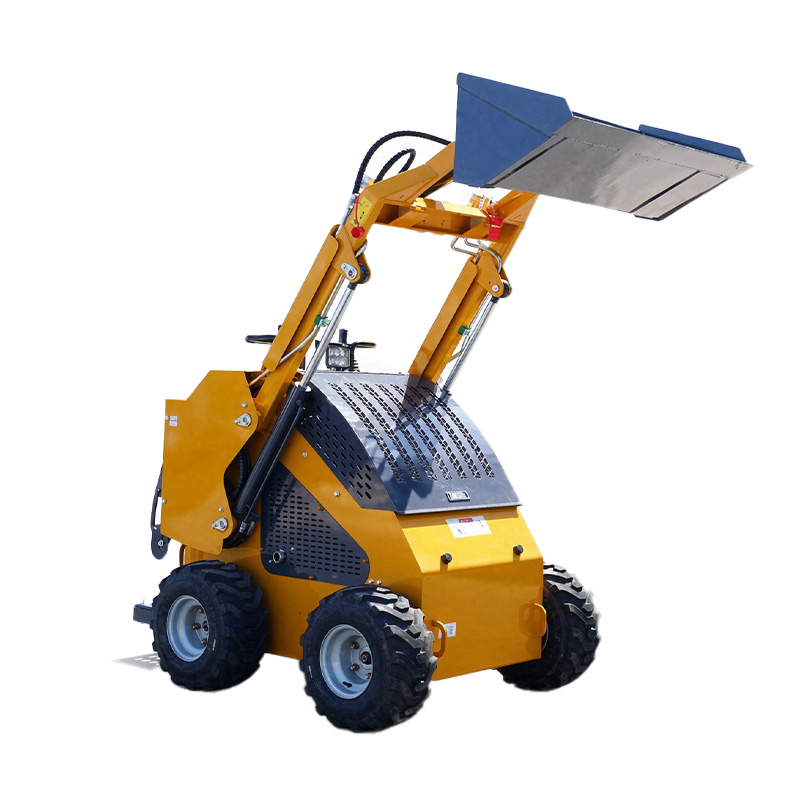

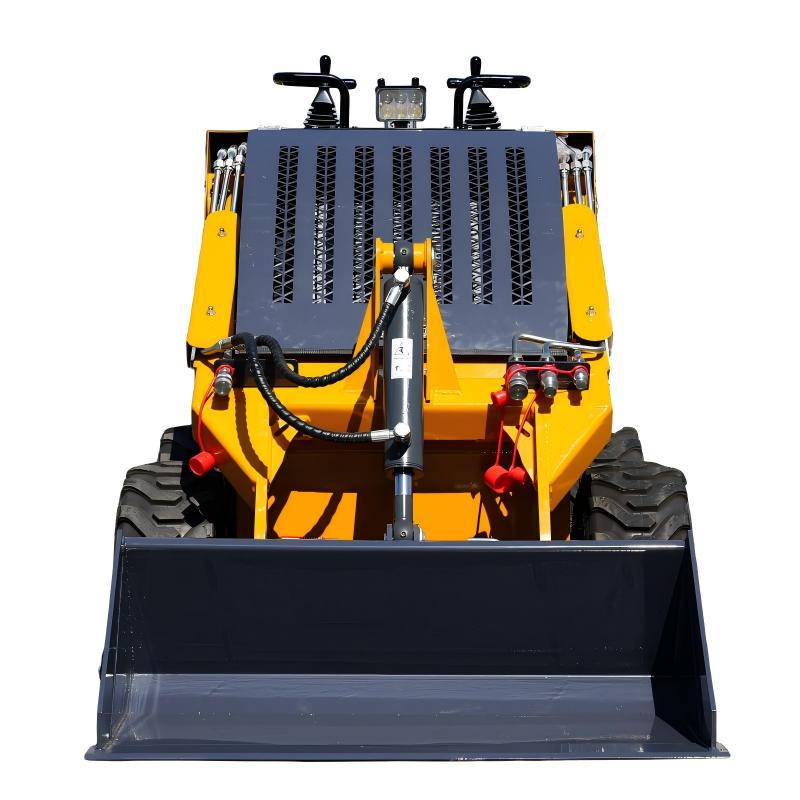

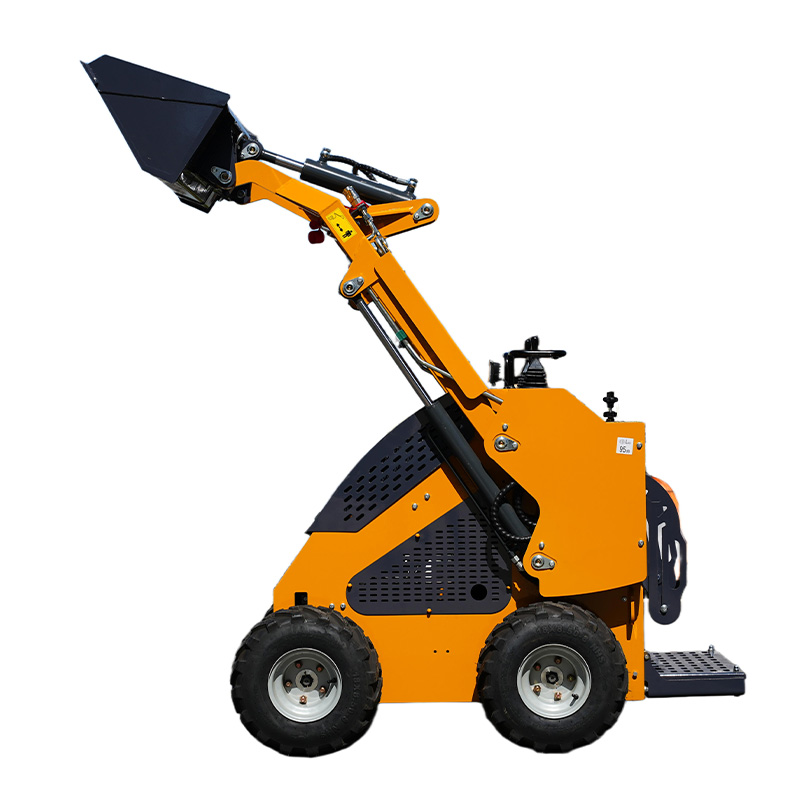

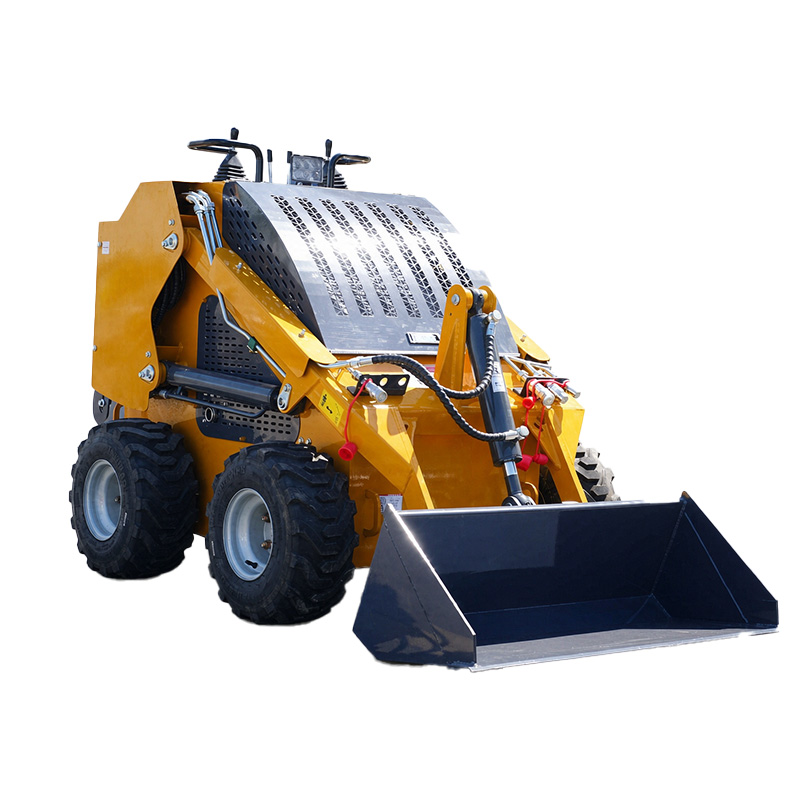

Skid Steer Loader
KW360
It is mainly used in situations where the working site is small, the ground is uneven, and the work content changes frequently. It is suitable for infrastructure construction, industrial applications, dock loading and unloading, urban streets, residential buildings, barns, livestock sheds, airport runways, etc. It can also be used as auxiliary equipment for large-scale engineering construction machinery.
Rated Load :

200KG

Bucket Capacity :

0.1m³

Engine and Power :

Koop 7.6 kW / Rato 7.9 kW / B&S 9.92 kW

Call Us

+8619323138308

Product Manual

Get A Quote

Download product Manual

Please leave your information below to obtain more product information

Get A Quote

Characteristic

  • Thickened steel body + powder-coated finish

    The main body is constructed from high-quality, thickened steel with a powder-coated finish that provides rust and corrosion resistance, enabling it to withstand outdoor dust and humid environments while extending the unit's service life.

  • 360° skid steering

    Skid-steer design eliminates the need for a turning radius, allowing for agile on-the-spot turns and delivering higher efficiency in edge cleaning and material transport within confined spaces.

  • Compact and miniature body

    The machine features a compact size, allowing easy access to areas inaccessible to large construction machinery, such as basements, indoor renovation sites, courtyards, greenhouses, warehouses, and narrow passageways.

  • High-flow tandem hydraulic pump

    Ample oil supply ensures rapid hydraulic system response, with smooth and powerful lifting and unloading actions.

  • High-horsepower engine

    Smooth power delivery and ample power reserves support prolonged, continuous operation.

  • Heavy-duty thickened off-road tires

    Heavy-duty engineering tires featuring deep treads offer excellent wear and impact resistance; they ensure low rolling resistance and high travel speeds on hard surfaces, provide stable traction, and allow for smooth operation on both paved roads and gravel sites.

Parameter

Overall Dimensions        2130*1050*1300mmRated Pressure  16Mpa
Operating Weight880kgBucket Width             1050mm
Gradeability25°Ground Clearance       130mm
Max. Breakout Force   3.5KNUnloading Distance258mm
Rated Load200kgWheelbase710mm
Max. Load300kgOverall Length with Bucket2130mm
Travel Speed      0-6km/hTire Size18*8.5-8
Machine Width1000mmCylinders1
