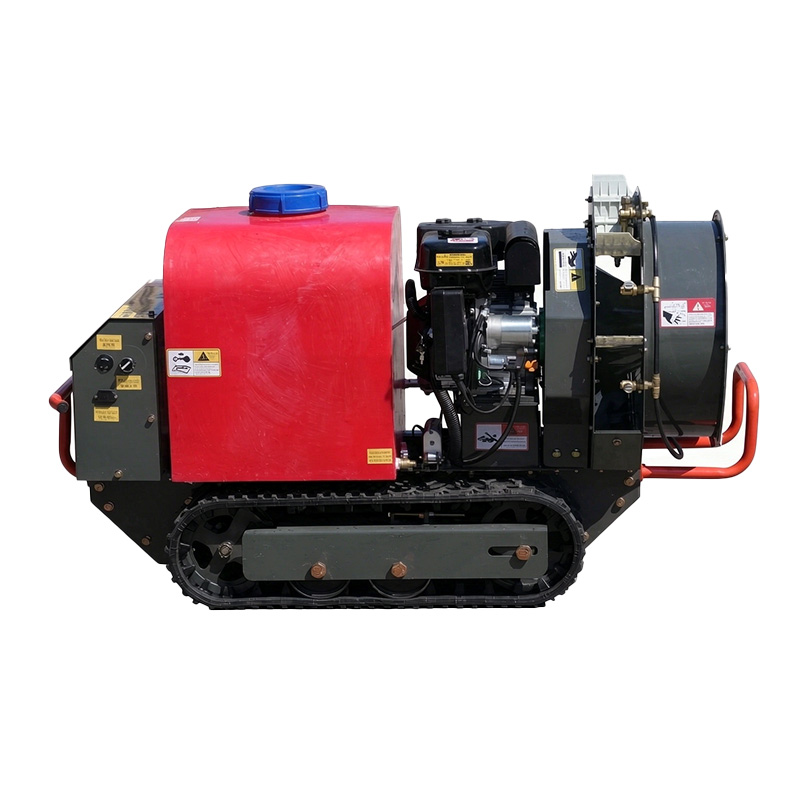

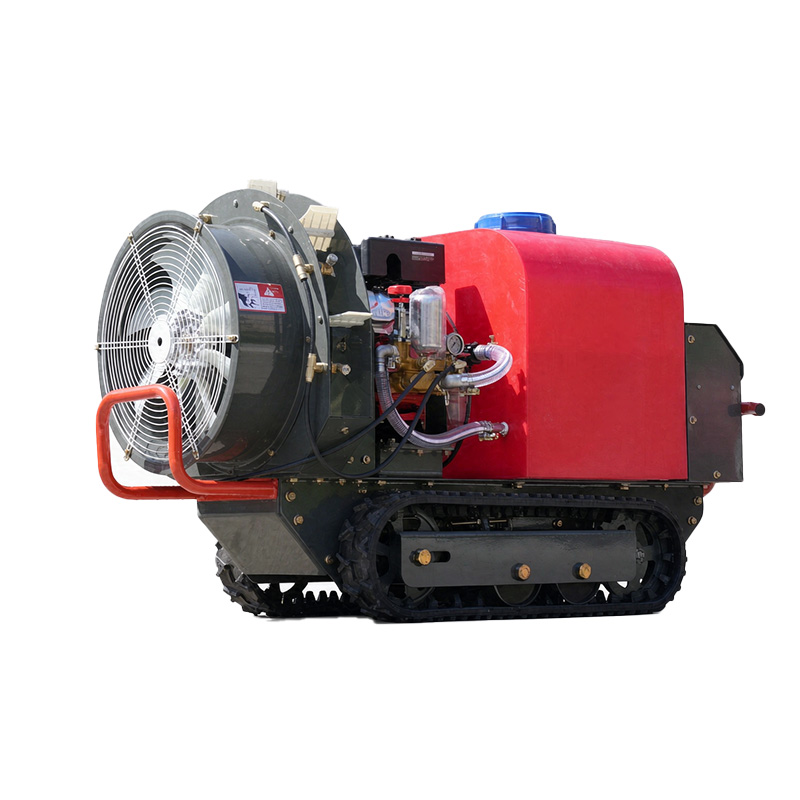

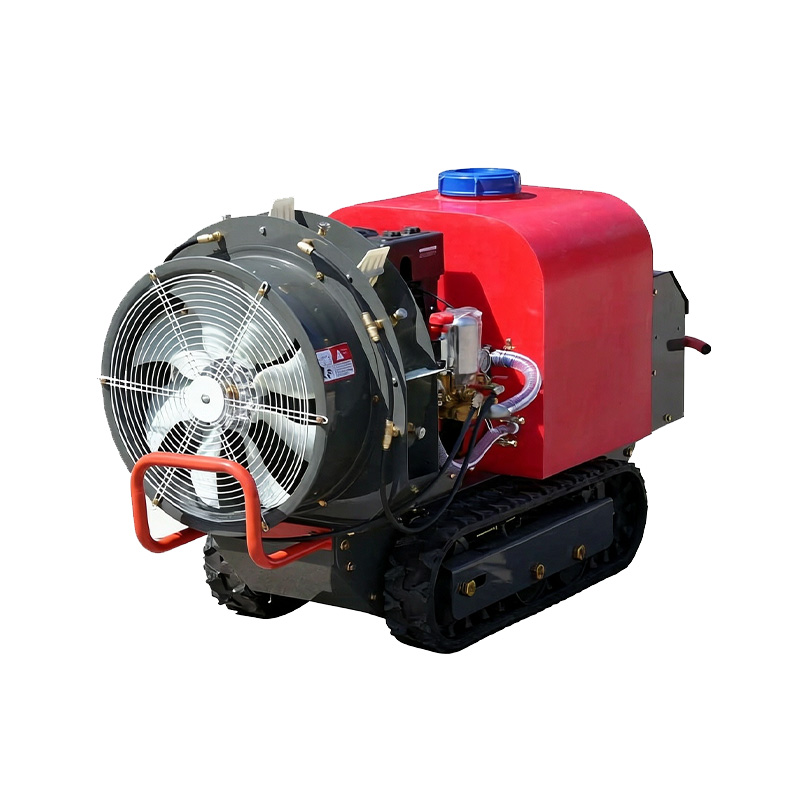

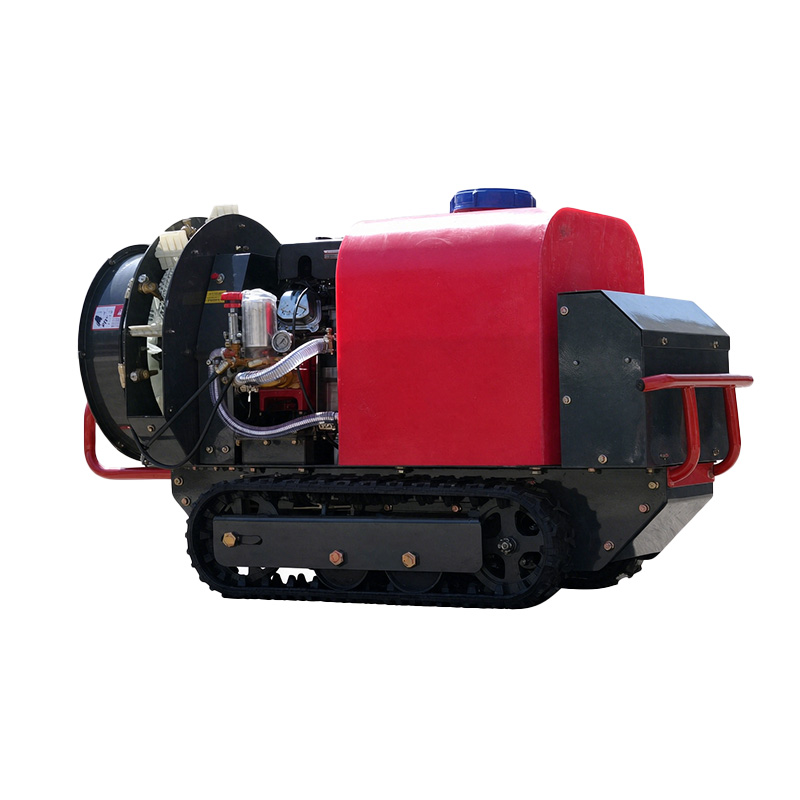

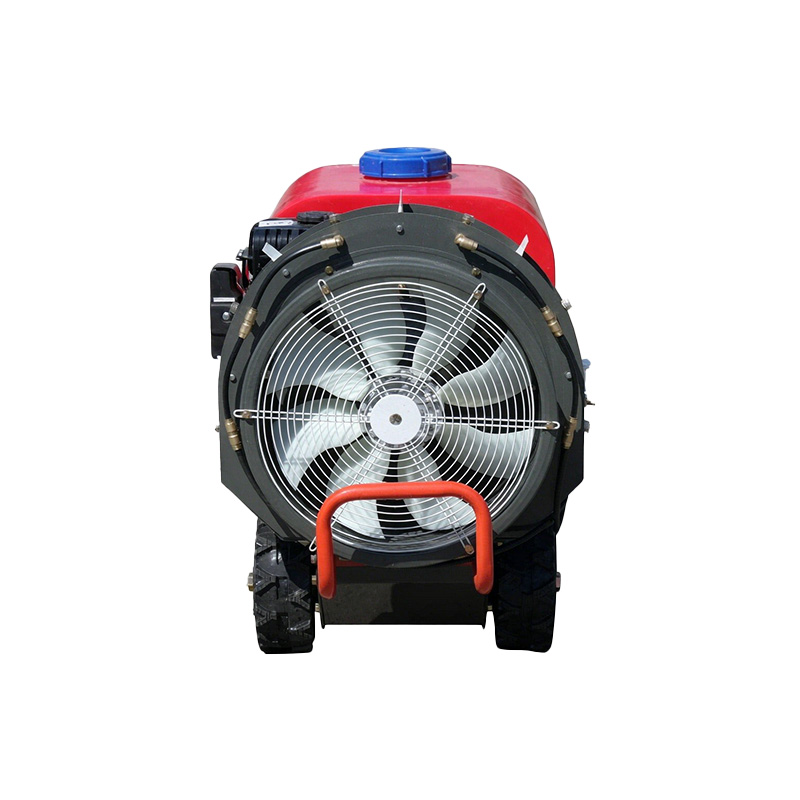

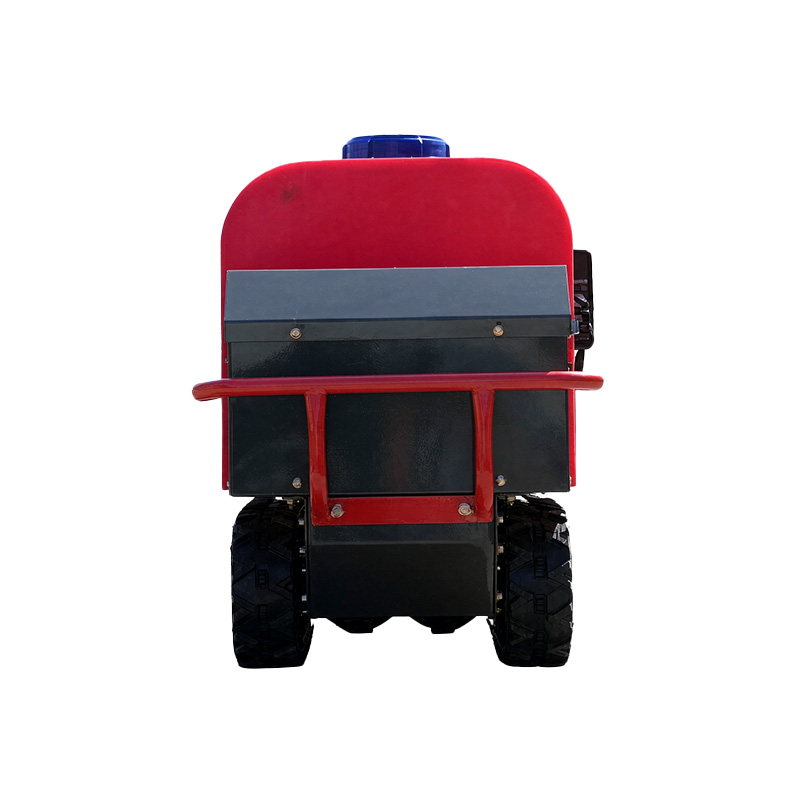

Remote Controlled Sprayer
3WYF-120
The 3WYF-120 tracked air-assisted crop protection sprayer is designed for large-scale, standardized orchards and field crops. Balancing operational efficiency, endurance, and ease of use, it serves as a high-performance solution for large-area pesticide application.
Storage tank capacity :

120L

Spray width :

12m

Number of nozzles :

6

Call Us

+8619323138308

Product Manual

Get A Quote

Download product Manual

Please leave your information below to obtain more product information

Get A Quote

Characteristic

  • Safe remote control with a range of over 100 meters

    Long-range remote control operation keeps operators away from the pesticide mist zone, preventing bodily contact with the chemical solution, while ensuring simple and safe operation.

  • Unique dual-battery solution

    The dual power system—combining a battery and a generator—offers flexible configuration to achieve virtually unlimited range, eliminating concerns about running out of power during extended field operations.

  • Large-capacity medicine box

    Large coverage area per charge; reduces the frequency of chemical replenishment.

  • Crawler undercarriage

    Offers excellent mobility on muddy and uneven field terrain, adapting well to the complex landscapes of orchards and farmlands.

  • Three-cylinder plunger industrial pump body

    The output pressure is stable and powerful, delivering exceptional atomization that enhances the adhesion of the pesticide mist, improves the utilization rate of the chemical solution, and reduces pesticide waste.

  • Renowned-brand engine

    Powered by a mature, reliable engine from a renowned brand, it delivers abundant and stable power with a low overall failure rate, ensuring continuous, long-duration operation in the field.

Parameter

Engine170 Loncin Gasoline EngineTravel Speed80m/min
PumpThree-Cylinder Plunger PumpTank Capacity120L
Dimensions1500*620*850mmSpray Width12m
Number of Nozzles

6 (Customizable)

Machine Weight190kg
Remote Control Range

>100m

EnduranceUnlimited via Engine-Driven Generator
