Remote Controlled Sprayer
3WYF-400

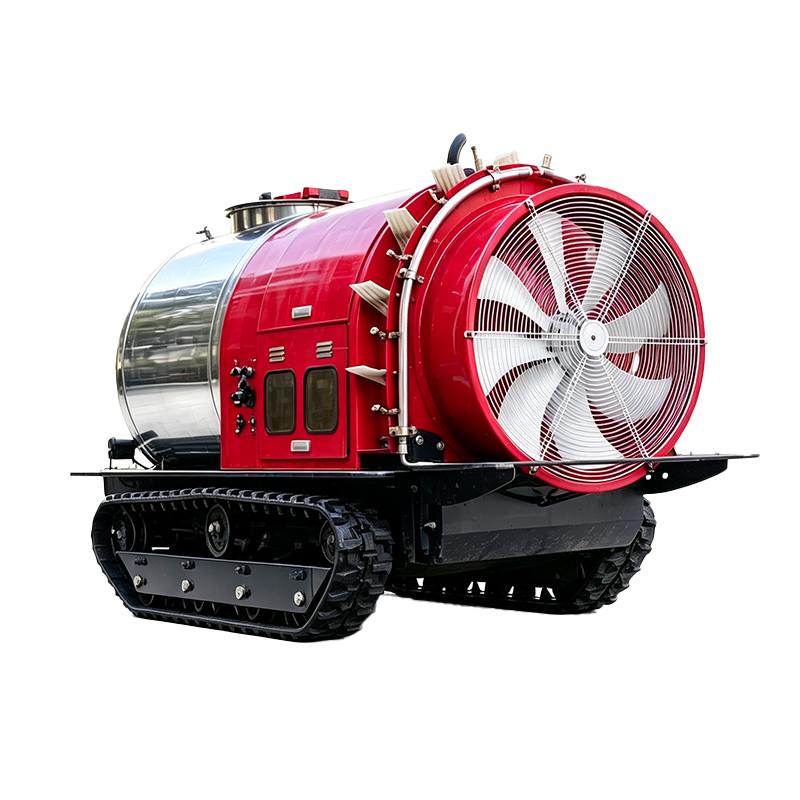

The 3WYF-400 tracked air-assisted crop sprayer is designed for large-scale farms, state-owned farms, and high-standard agricultural fields. Combining an extra-large tank, powerful performance, and exceptional durability, it is built to handle high-intensity, large-scale crop protection spraying operations.
Storage tank capacity :

400L

Spray width :

12m

Number of nozzles :

10

Call Us

+8619323138308

Product Manual

Get A Quote

Download product Manual

Please leave your information below to obtain more product information

Get A Quote

Characteristic

  • Remote-controlled operation

    Remote control from a distance of over 100 meters allows operators to stay away from pesticide spray zones, minimizing direct human contact with pesticides and reducing the risk of poisoning or allergic reactions.

  • Suitable for a wide range of scenarios

    Suitable for operations across a wide range of settings, including orchards, open fields, vegetable greenhouses, tea plantations, and nurseries.

  • Can be operated by a single person

    Say goodbye to manual bending and heavy-bearing work. A single person can complete the entire machine operation, greatly reducing manual input and labor intensity.

  • High utilization rate of the liquid formulation

    The atomization is uniform and fine with strong penetrating power, there is minimal medication waste, effectively reducing treatment costs.

  • Heavy-duty industrial machine body

    The frame and crawler undercarriage structures have been reinforced, resulting in high overall structural strength and excellent resistance to shocks and heavy loads; the machine offers superior mobility across muddy and complex terrain, making it suitable for prolonged, large-scale continuous operations.

  • 10-set spray nozzle system

    Multi-nozzle configuration ensures uniform and fine spraying with excellent atomization; the spray adheres evenly, enhancing pesticide utilization and delivering outstanding pest and disease control.

  • Extra-large capacity medicine box

    Large-capacity chemical tank, Eliminates the need for frequent refilling, significantly extends effective operating time, reduces time spent traveling for replenishment, and boosts overall operational efficiency.

Parameter

Engine192 Loncin Gasoline EngineTravel Speed75m/min
PumpThree-Cylinder Plunger PumpTank Capacity400L
Dimensions1800*940*1200mmSpray Width12m
Number of Nozzles

10

Machine Weight368kg
Remote Control Range

>100m

EnduranceUnlimited via Engine-Driven Generator
