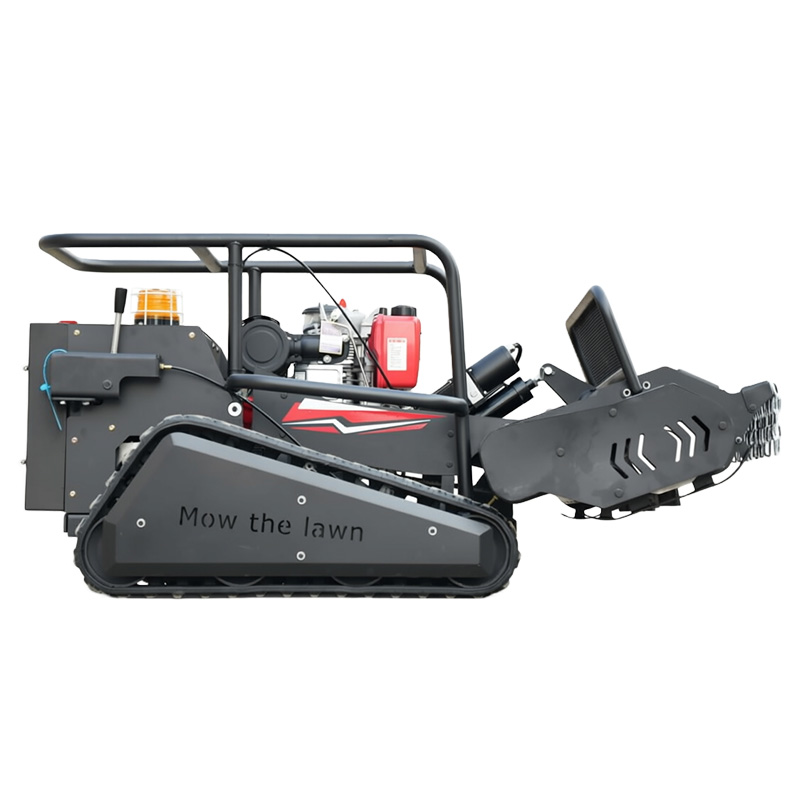

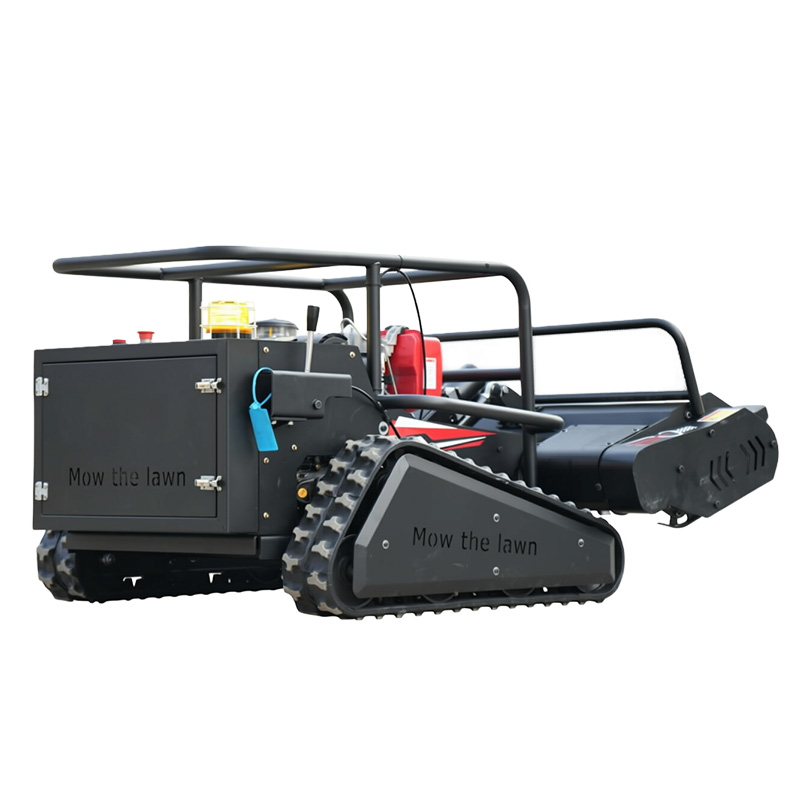

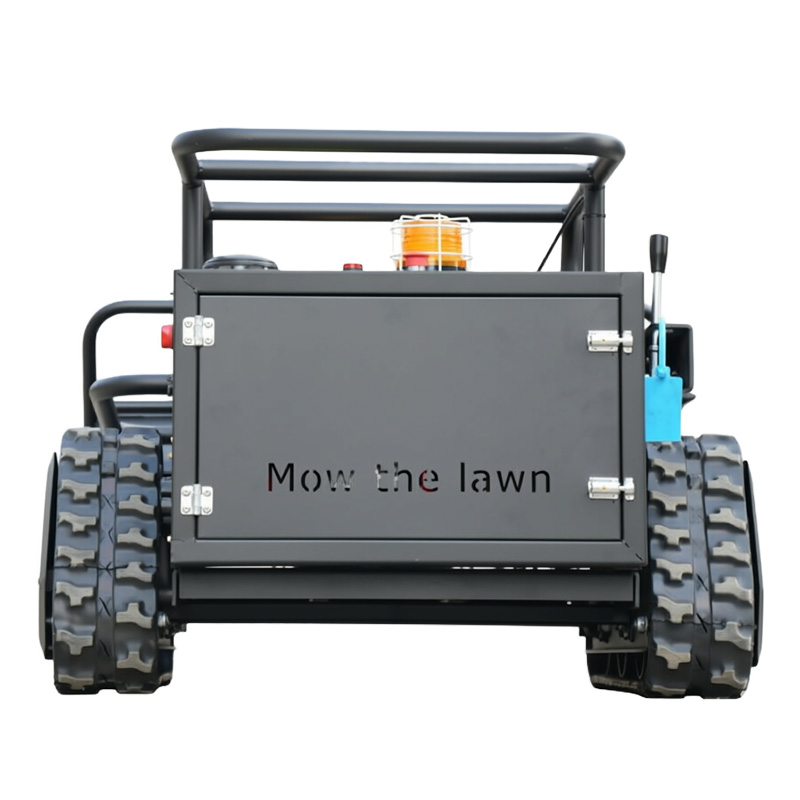

Flail Mower
KM-800JR
The remote-controlled mower is a tool designed for agricultural and forestry use; remote operation ensures greater safety and efficiency. Capable of shredding weeds and small shrubs, it is suitable for settings such as gardens and orchards.
Cutting range :

800mm

Total weight :

350kg

Engine :

Kaiyuelin/Changchai /Koop

Call Us

+8619323138308

Product Manual

Get A Quote

Download product Manual

Please leave your information below to obtain more product information

Get A Quote

Characteristic

  • One-touch start

    Remote-controlled one-touch start

  • Adjustable Chassis

    Chassis height adjustment range: 20–150 mm

  • Grass-Mulching Cutter Head Design

    Features a flail or rotary mulching mechanism that directly shreds weeds and returns the clippings to the field to improve the soil; eliminates the need for weed collection and removal, thereby saving on subsequent labor steps

  • Chain Curtain for Debris Containment

    It cushions the impact and blocks flying debris, protecting operators, nearby fruit tree saplings, and structures. By preventing injuries and damage to tree bark caused by flying fragments, it significantly enhances safety during land-clearing operations and meets agricultural machinery safety standards

  • Crawler Chassis – All-Terrain Capability

    The rubber tracks provide a large ground contact area and superior climbing ability, capable of scaling steep slopes of 40°–60°; suitable for operations in mountainous areas, terraced fields, on slopes, and in muddy or low-lying terrain

Parameter

Overall Size1600*950*800mmStarting MethodElectric Start
Packing Size1750*1050*900mmTravel FunctionHigh/Low Speed Mode, Cruise Control, Zero‑Turn Capability (Tank‑Style Rotation Steering)
Machine Weight350kgBattery Specification24V 20Ah
Packing Weight420kgGenerator Power1260W
Cutting Width800mmTravel MotorDual 650W Brushless Motors
Cutting Height10‑280mmStop ModeOne‑Key Shutdown
Blade Rotation ControlClutch ControlTrackHigh‑Wear‑Resistant Rubber Track
Blade Specification6.5mm Custom Manganese Steel Serrated BladeRemote Control Distance500 Meters
Power SystemHybrid Oil‑Electric
Climbing Angle50°
