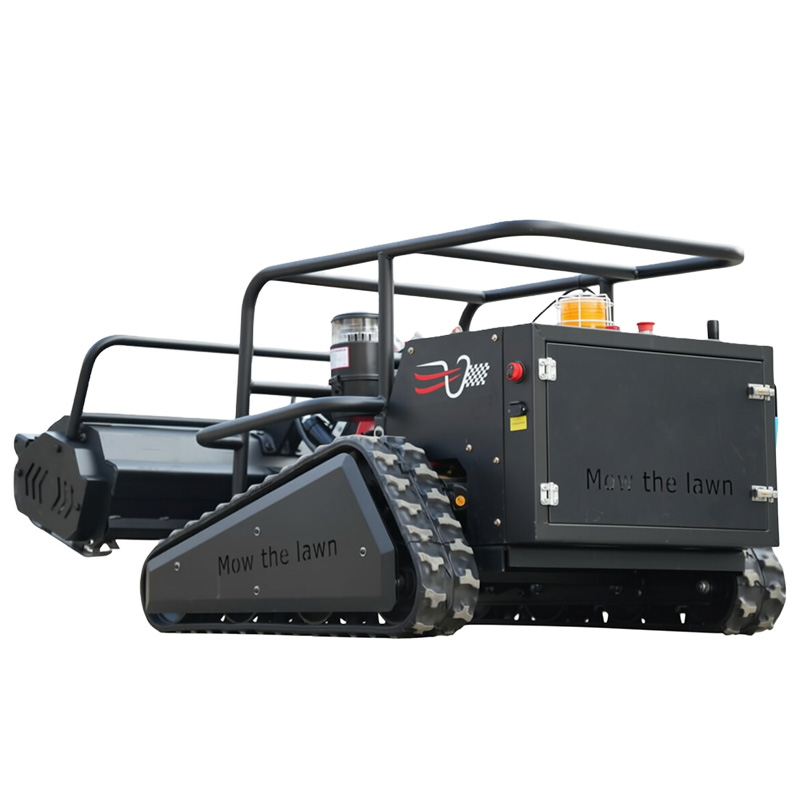

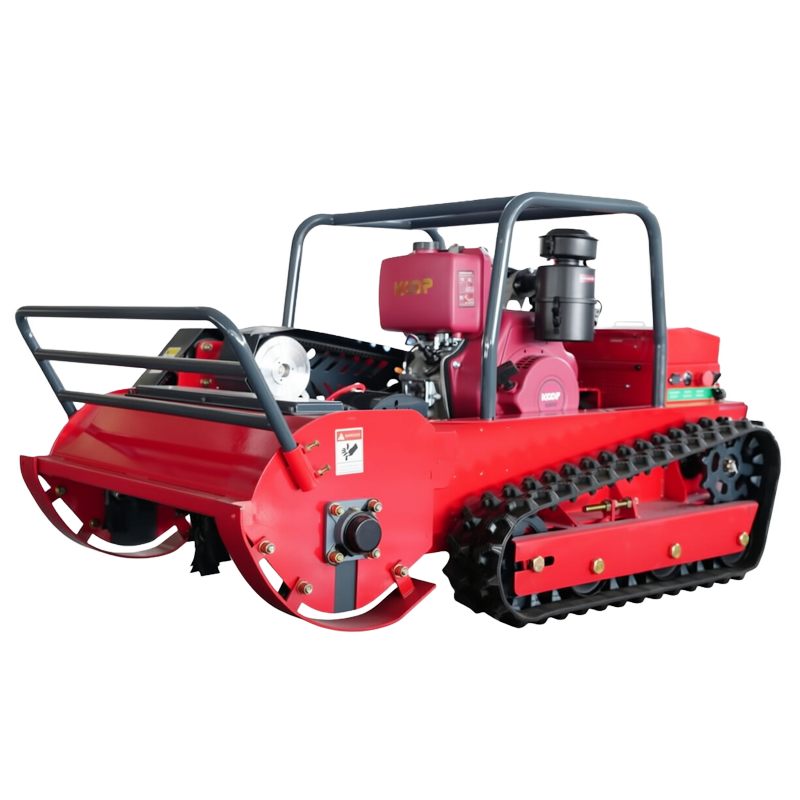

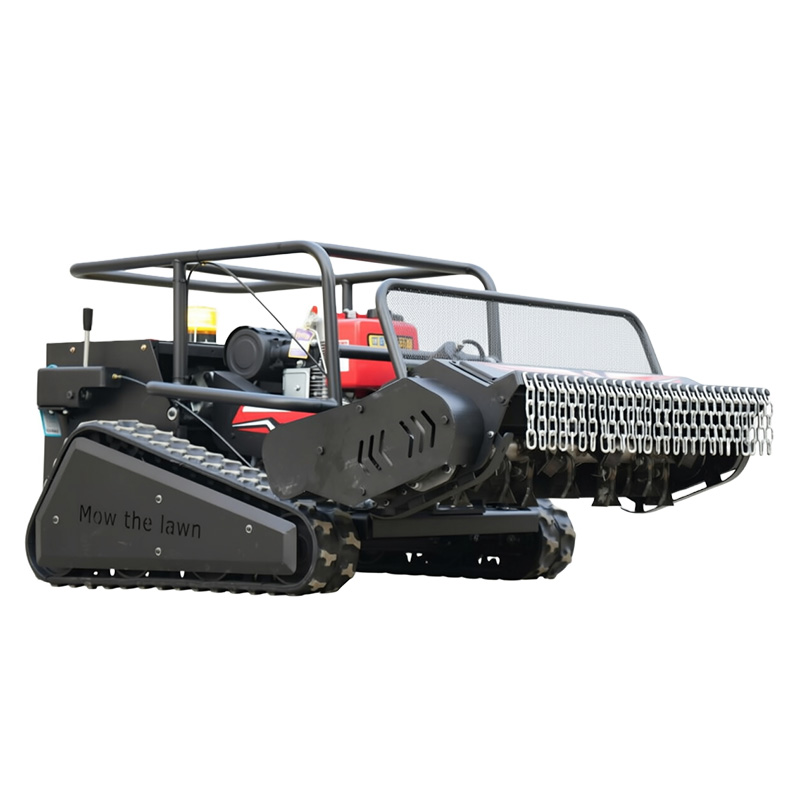

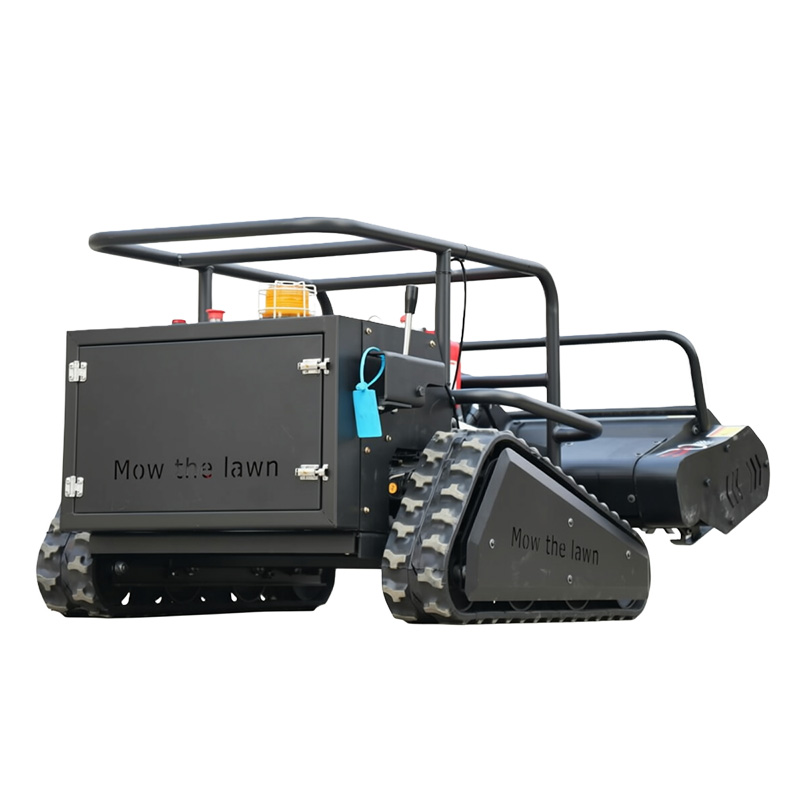

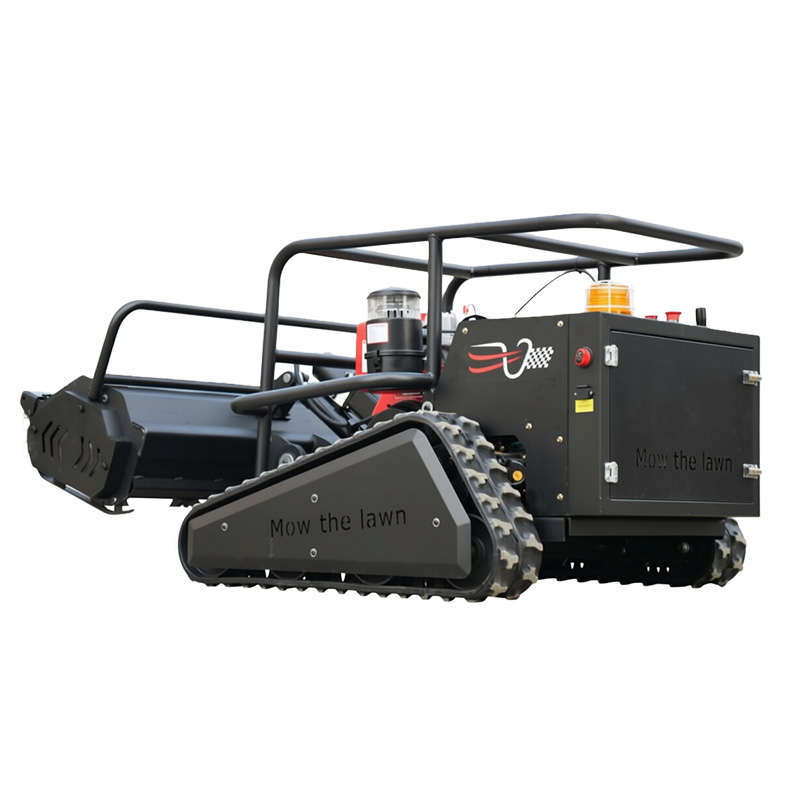

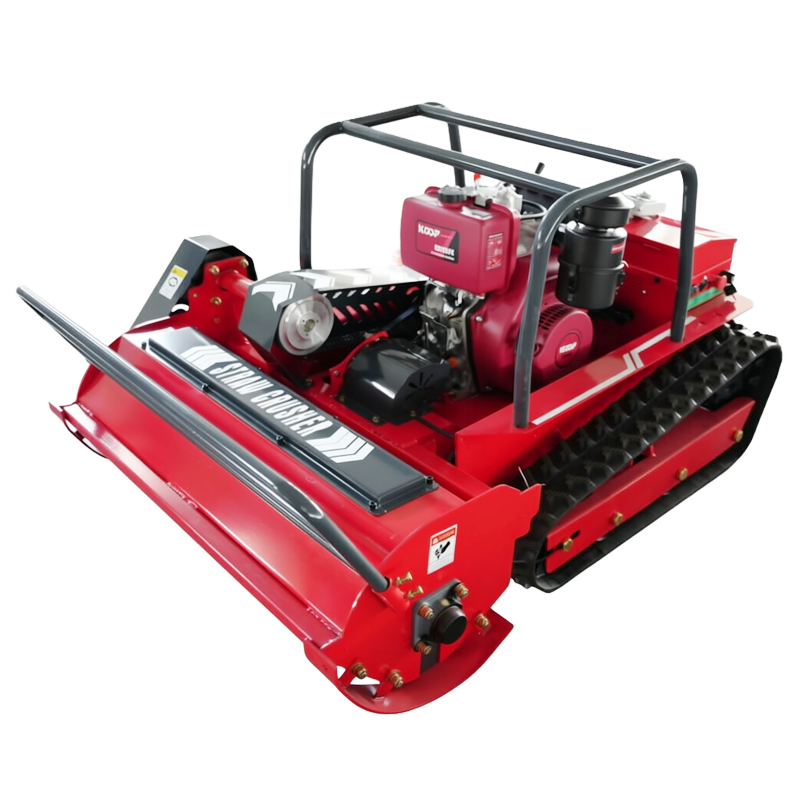

Flail Mower
KM1000-JR
The remote-controlled mower is a tool designed for agricultural and forestry use; remote operation ensures greater safety and efficiency. Capable of shredding weeds and small shrubs, it is suitable for settings such as gardens and orchards.
Cutting range :

1000mm

Total weight :

390kg

Engine :

Kaiyuelin/Changchai /Koop

Call Us

+8619323138308

Product Manual

Get A Quote

Download product Manual

Please leave your information below to obtain more product information

Get A Quote

Characteristic

  • One-touch start

    Remote control one-touch start

  • Height-adjustable base

    The adjustable chassis height range is 20–150 mm

  • Grass-shredding cutterhead structure

    Features a flail or rotary blade mechanism that directly shreds weeds and returns the residue to the field to improve soil quality; eliminates the need for weed collection and removal, thereby saving on subsequent processing steps

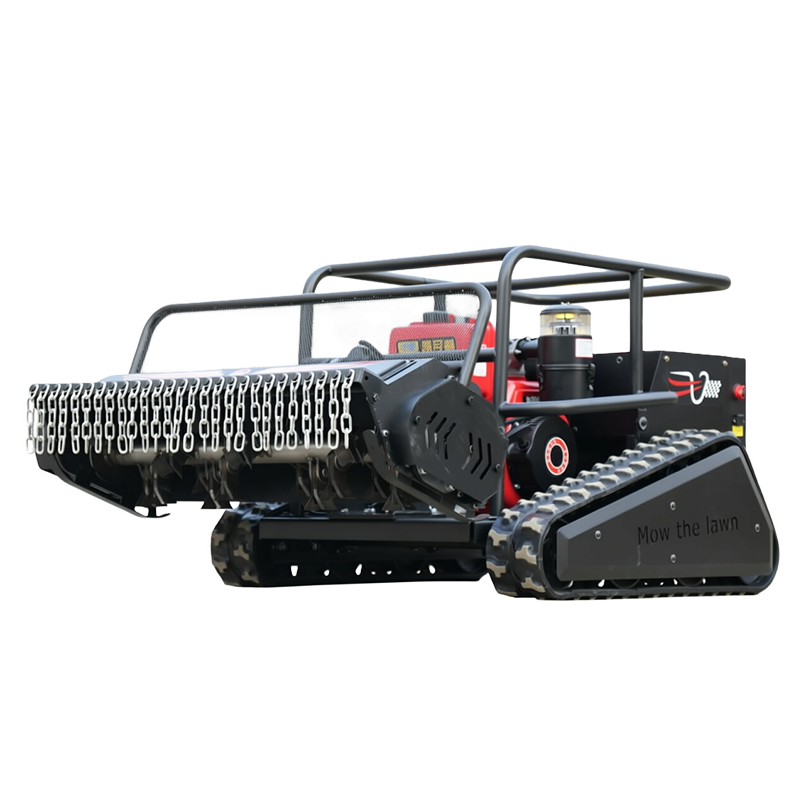

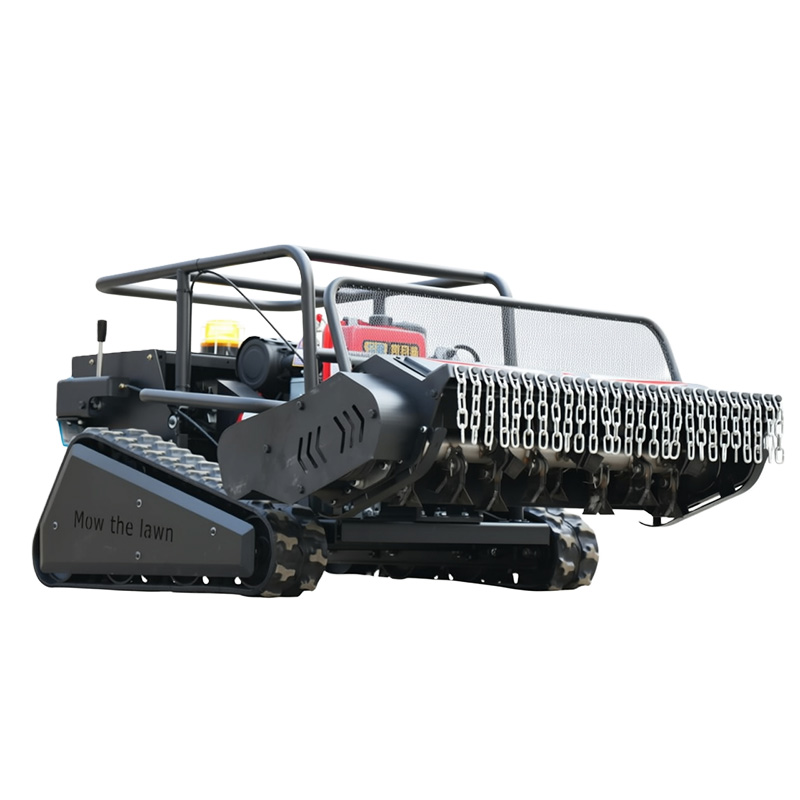

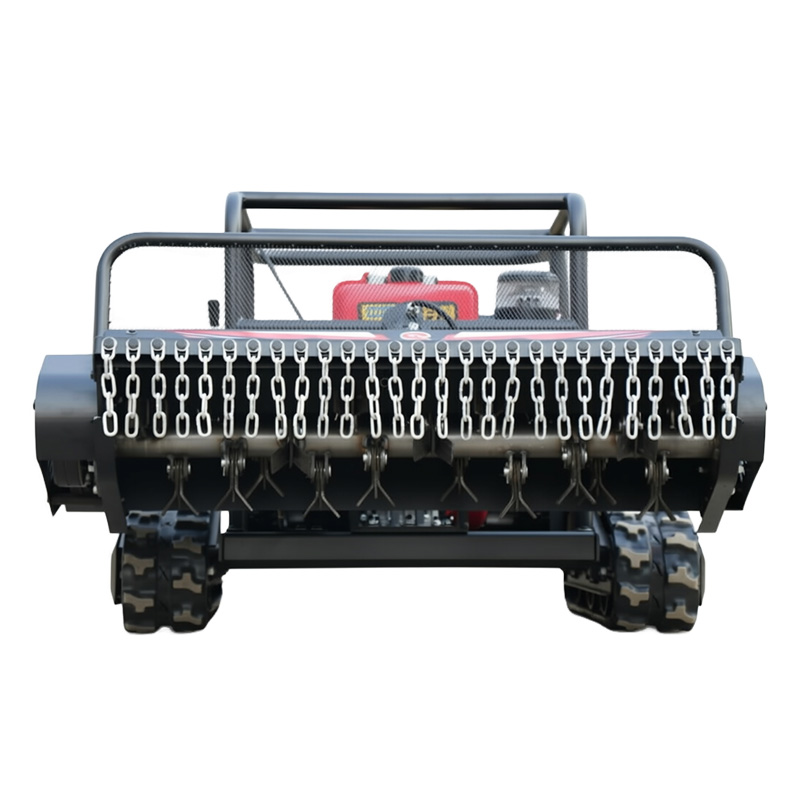

  • Chain-weighted grass curtain

    It cushions and blocks flying debris, protecting operators, nearby fruit tree saplings, and structures; this prevents injuries and damage to tree bark caused by flying fragments, significantly enhancing safety during land-clearing operations and meeting agricultural machinery safety standards

  • Tracked chassis, all-terrain capability

    Rubber tracks provide a large ground contact area and strong climbing capability, allowing the machine to ascend steep slopes of up to 40°–60° and operate across mountainous terrain, terraced fields, slopes, and muddy, low-lying areas

Parameter

Overall Size        1700*1200*800mmStarting Mode               Electric Start
Packing Size1850*1300*900mmTravel Function      High/Low Speed Mode, Cruise Control, Zero‑Turn Capability (Tank‑Style Rotation Steering)
Machine Weight        390kg  Battery Specification24V 20Ah
Packing Weight         460kg    Generator Power1260W
Cutting Width        1000mm    Travel MotorDual 650W Brushless Motor
Cutting Height  10‑280mm   Stop ModeOne‑Key Shutdown
Blade Rotation Control      Clutch ControlTrackHigh‑Wear‑Resistant Rubber Track
Blade Specification6.5mm Custom Manganese Steel Serrated BladeRemote Control Distance500 m
Power System   Hybrid Gas‑Electric
Max Climbing Angle50°
