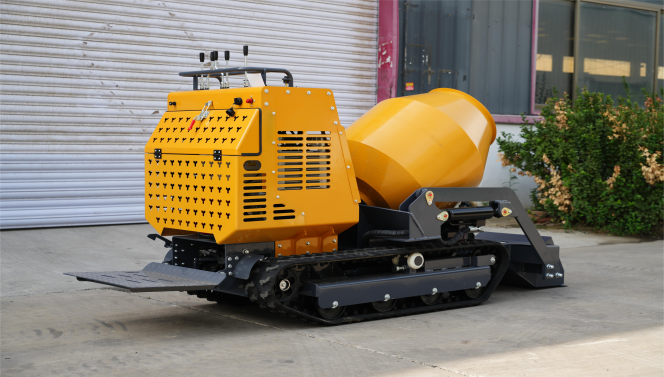

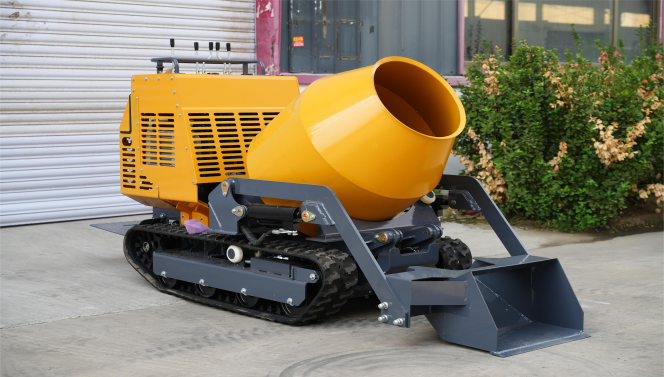

KM-T tracked mixing dumper is a multifunctional engineering equipment integrating material mixing, short-distance transportation and hydraulic unloading, especially suitable for construction scenes with complicated road conditions such as mountain construction sites, rural infrastructure, orchard reconstruction, etc. The tracked walking structure can easily deal with muddy roads, steep slopes and concave-convex country roads, and complete concrete mixing, transportation and dumping operations in one stop, eliminating the tedious process of cooperation of multiple devices.
The equipment is equipped with Briggs;Stratton engine, with displacement of 420CC, rated power of 13.5HP (rotating speed of 3600rpm) and sufficient and stable power; Unloading adopts hydraulic tipping mode, which saves labor in control and makes unloading clean and thorough. The overall dimension of the whole machine is 2500×900×1500mm, the total weight of the whole machine is 750KG, the length of the hopper is 820mm, the tank volume can reach 300dm³, enough concrete mortar can be stirred and transported at one time, the chassis width is 850mm, the track width is 180mm, the narrow machine body can pass through the narrow construction area, the maximum climbing angle is 25, and it can work smoothly under the condition of high and low drop.
The products hold many authoritative certifications of ISO, CE and EPA, and their environmental protection performance meets the export access standards of many countries. The ground pressure of widened rubber track is low, which is not easy to destroy the original pavement and farmland surface; The integrated mixing tank ensures uniform mixing of mortar, low failure rate of hydraulic unloading structure and convenient maintenance. Whether it is the concrete construction of rural self-built houses, small-scale slope protection projects, or scattered outdoor civil works, this model can simultaneously realize mixing+transportation+unloading, effectively compress the working procedure time and reduce labor input, and is an efficient optimization equipment for small-scale outdoor civil works.
